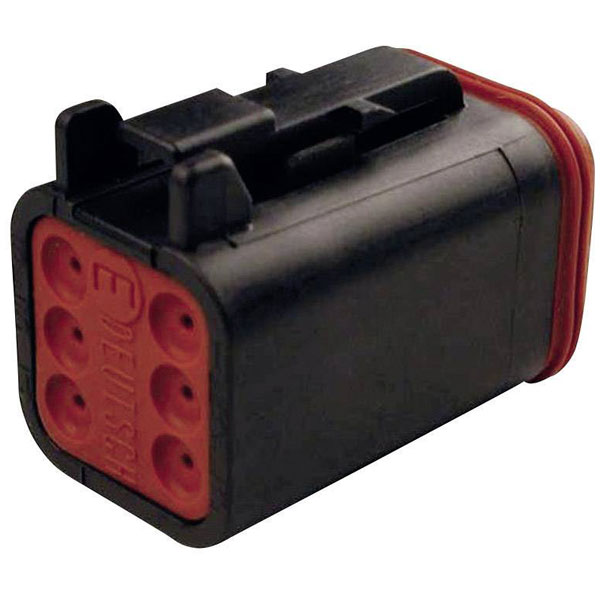

TE Connectivity DT 06-6 S-CE06 Connector: Housing, Contacts, Fuse Wedge

TE Connectivity manufactures the DT 06-6 S-CE06, a reliable bullet connector known for its durability and secure connections. This connector is resistant to harsh environments, making it suitable for automotive and industrial applications. It ensures excellent electrical performance and easy installation in demanding conditions.

Type	Socket, straight
Number of Contacts	6
Number of Rows	2
Cable Ø (max.)	3.68mm
Cable Ø range	1.35 - 3.68mm
Cable Ø up to	1.35mm
Case Material	Thermoplastic material
Colour	Black
Connection	Crimp
Connection Angle	180°
Cross Section	2 mm² (max)
Current Rating	13A
max. cross section	2mm²
Nominal Voltage	1500V AC
Number of pins	6
Series	DT
Wire Gauge (AWG)	20 - 14
