TE Connectivity 963040-1 Timer Connector 2-Pin Package JUN-TIMER GEH

Discontinued

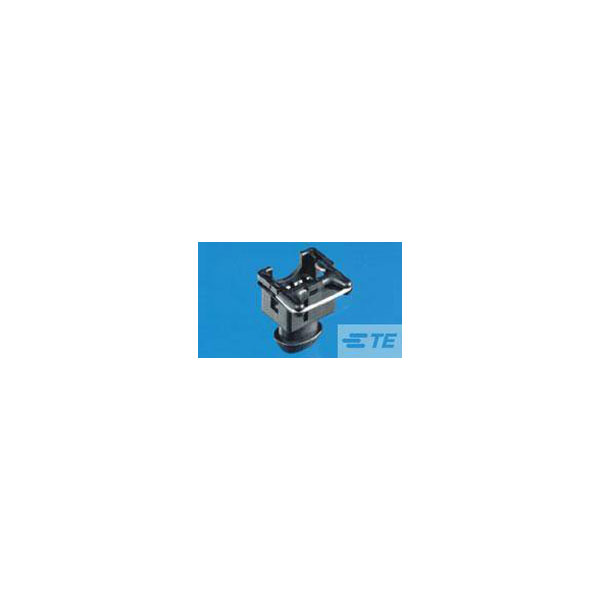

The TE Connectivity 963040-1 is a female shrouded automotive connector with two positions.

It features a robust design for secure and reliable connections.

This connector is commonly used in automotive electrical systems for signal and power applications.

Its durability makes it suitable for harsh environmental conditions likely encountered in vehicles.

Type	TE AMP Timer - Connectors
Body Material	PBT
Circuit Application	Signal
Colour	Blue
Connector System	Wire-to-Device
Contact Type	Female Socket
ELV	Compliant
Flammability Rating	UL94 HB
Gender	Female
Height	1.3976inch
Hybrid Connector	No
Lead Free	Not Applicable
Length	0.9213inch
Mating Tab Width	0.063inch
Maximum Operating Temperature	212°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP Timer - Connectors
Mount	Free Hanging
Number of Contacts	2
Number of Positions	2
Number of Rows	1
Orientation	Straight
Package Quantity	1150
Packaging	Bulk
Packaging Type	Package
Pitch	5mm
Polarized	Yes
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	Yes (With)
Series	Junior Power Timer
Serviceable	No
Strain Relief	No (Without)
Termination	Crimp
Width	23.6mm
