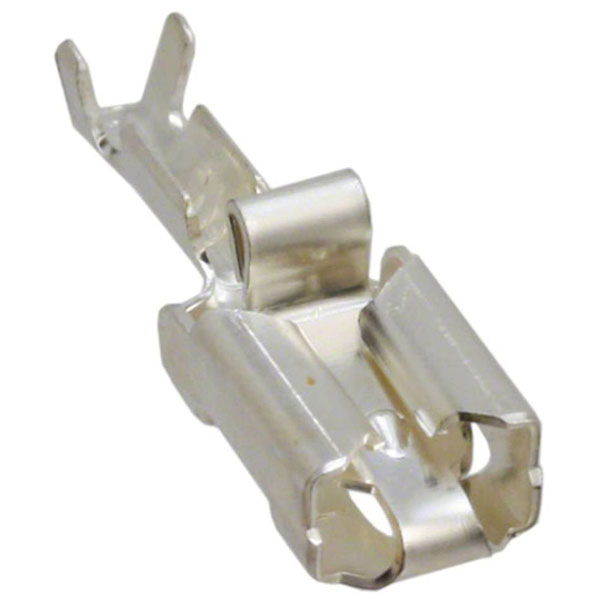

TE Connectivity's 928901-4 is an unshrouded female terminal.
It accommodates wires sized between 17 to 13 AWG.
The terminal is ideal for power applications due to its reliable conductivity.
It is commonly used in electrical harnesses and panel connections.
| Insulation |
Non-Insulated |
| Colour |
Silver |
| Tab Width |
0.25inch |
| Tab Thickness |
0.032inch |
| Gender |
Female |
| Barrel Type |
Open |
| Color |
Silver |
| Compatible Insulation Diameter Range |
.12 – .169 |
| Compatible With Agency/Standards Products |
UL |
| Connection Angle |
180° |
| Connector thickness |
0.81mm |
| Connector Width |
6.35mm |
| Contact Base Material |
Phosphor Bronze |
| Contact Material |
Phosphor bronze tin plated |
| Contact Plating |
Tin |
| Crimp Type |
F-Crimp |
| Cross-section range |
1 - 2.50 mm² |
| Insulated Wire Support |
Yes |
| Insulation Diameter |
0.169inch |
| Insulation Option |
Uninsulated |
| Insulation Type |
Not insulated |
| Length |
0.88inch |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.25 |
| max. cross section |
2.50mm² |
| Maximum Wire Size AWG |
17 |
| Min. cross section |
1mm² |
| Misc Attribute |
Positive Lock |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Package Quantity |
1200 |
| Packaging |
Box |
| Packaging Method |
Loose Piece/Carton |
| Packaging Quantity |
1200 |
| Plating |
Tin |
| Product Length |
.88 |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
Mark I, AMP |
| Size |
6.35 x 0.81 mm |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Receptacle |
| Type |
Blade receptacle |
| Wire Gauge (Max) |
17AWG |
| Wire Gauge (Min) |
5AWG |
| Wire Insulation Support |
With |
| Wire Size |
17 – 13 |
| Wire/Cable Diameter |
0.169inch |
| Wire/Cable Type |
Discrete |
