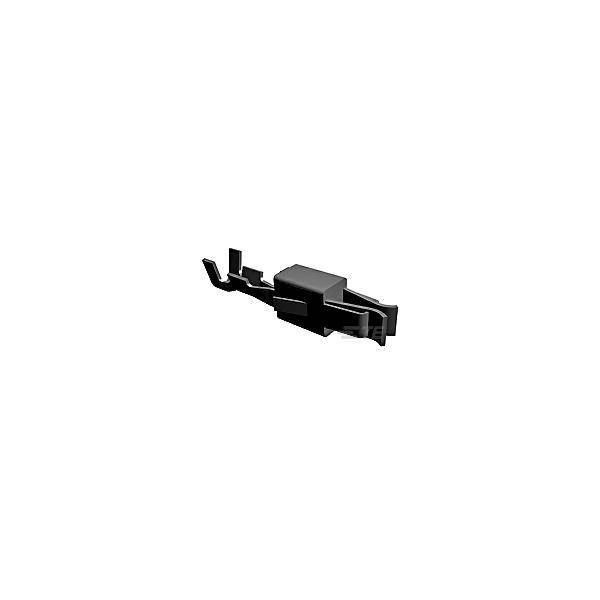

TE Connectivity 927776-6 Timer Terminal Box 1 pc JUN-POW-TIM Series

The TE Connectivity 927776-6 is a robust terminal connector designed for reliable electrical connections. It features high-quality construction suitable for automotive and industrial applications. This terminal is part of the TE AMP Timer series, ensuring secure and stable performance in demanding environments.

Type	TE AMP Timer - Terminals
Pin or Socket	Female
Approvals	VDE, IEC
Contact Material	Silver, Copper, Tin
Contact Plating	Silver
Contact Type	Signal
Depth	2.7mm
ELV	Compliant
Gender	Female
Height	4.15mm
Insulation Diameter	-1.6mm
Lead Free	Not Applicable
Length	18.8mm
Maximum Operating Temperature	-140°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP Timer - Terminals
Mount	Cable
Orientation	Straight
Package Quantity	1000
Packaging	Loose Piece
Packaging Type	Box
Plating Thickness	0.8um
Radiation Hardening	No
RoHS Compliant	Yes
Series	Junior Power Timer
Shielding	Unshielded
Termination	Crimp
Wire Gauge (Max)	24AWG
Wire Gauge (Min)	20AWG
Wire/Cable Type	Discrete
