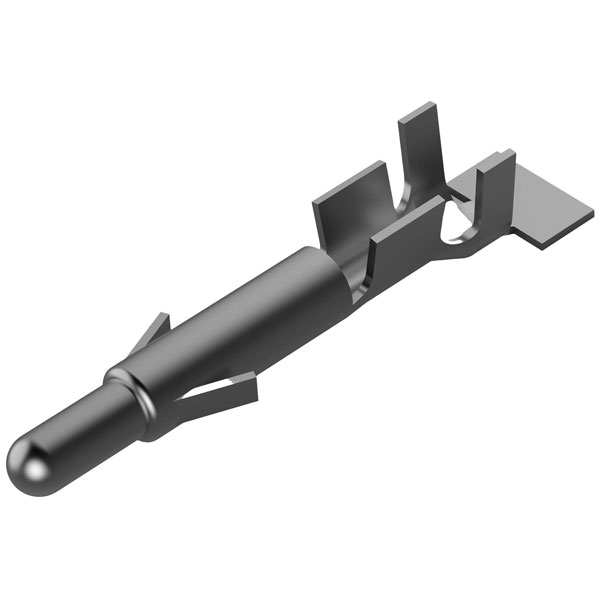

TE Connectivity 926883-1 Universal MATE-N-LOK Pin Inset, 600 VAC, 20-14 AWG

The TE Connectivity Pin Inset 926883-1 is an industrial-grade connector component designed for high-voltage applications, known for its robust and durable build. This square connector is compatible with universal Mate-N-Lok housing, accommodating wire sizes from 0.5 to 2.1 mm. It is typically used in electrical engineering applications requiring reliable and heavy-duty connectivity solutions.

Type	Pin inset
Mounting Type	Cable mount
Mounting Direction	Straight
Approvals	UL
Circuit Application	Power
Compatible Insulation Diameter Range	.06 – .13
Compatible With Agency/Standards Products	VDE
Connector System	Wire-to-Wire
Contact Base Material	Brass
Contact Current Rating	19a
Contact Current Rating (Max)	19
Contact Gender	Male
Contact Material	Brass
Contact Mating Area Plating Material	Tin (Sn)
Contact Plating	Tin
Contact Retention	Yes (With)
Contact Retention Within Housing	With
Contact Shape & Form	Round
Contact Style	Pin
Contact Type	Pin
Current Rating	19a
Depth	4mm
ELV	Compliant
Gender	Male
Height	4.5mm
Insulation Diameter	0.13inch
Lead Free	Not Applicable
Length	19.9mm
Material	Brass
Maximum Operating Temperature	221°C
Minimum Operating Temperature	-67°C
Mount	Cable
Operating Supply Voltage	600v
Operating Temperature Range	-67 – 221
Operating Voltage	600
Orientation	Straight
Package Quantity	5000
Packaging	Tape and Reel
Packaging Method	Reel
Packaging Quantity	5000
Product Terminates To	Wire & Cable
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Universal MATE-N-LOK
Shielding	Unshielded
Termination	Crimp
Termination Method to Wire & Cable	Crimp
VDE Tested	Yes
Voltage Rating	600v
Voltage Rating (AC)	600v
Wire Gauge (Max)	20AWG
Wire Gauge (Min)	14AWG
Wire Insulation Support	Without
Wire Size	20 – 14
Wire/Cable Diameter	3.3mm
Wire/Cable Gauge	14AWG
Wire/Cable Type	Discrete
