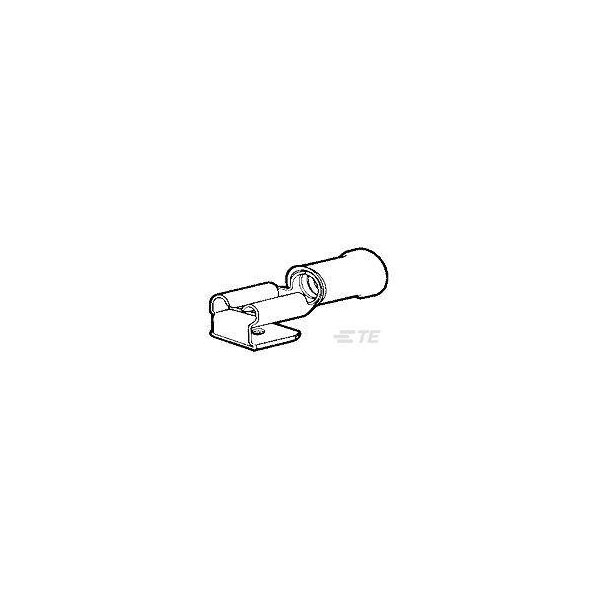

TE Connectivity 9-160463-5 FASTON Terminals Pre-Insulated 6.3mm Box

TE Connectivity manufactures the 9-160463-5 crimp connector, which is an uninsulated blade terminal receptacle with a 6.3 mm size. This terminal is typically used for secure electrical connections in household appliances and electronic equipment. Its design facilitates easy crimping and reliable connectivity, ensuring compatibility with diverse applications.

Insulation	Insulated
Colour	Blue
Tab Width	6.35mm
Tab Thickness	0.81mm
Gender	FEMALE AND MALE
Barrel Type	Closed
Compatible Insulation Diameter Range	.17
Contact Base Material	Phosphor Bronze
Contact Material	Bronze
Contact Plating	Tin
Crimp Type	Compression Crimp
ELV	Compliant
Insulated Wire Support	Yes
Insulation Diameter	4.32mm
Insulation Material	Nylon
Insulation Option	Partially Insulated
Lead Free	Not Applicable
Length	0.922inch
Material	Bronze
Mating Tab Thickness	.032
Mating Tab Width	.25
Misc Attribute	TE AMP FASTON Terminals - Pre-Insulated
Mount	Free Hanging
Package Quantity	500
Packaging	Box
Packaging Method	Box
Packaging Quantity	500
Packaging Type	Box
Plating	Tin
Product Length	.922
Product Terminates To	Wire & Cable
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Fastin-Faston, PIDG
Terminal Material	Bronze
Terminal Orientation	Piggyback
Terminal Plating Material	Tin
Termination	Receptacle
Type	Quick Disconnects
Voltage Rating (AC)	300v
Wire Gauge (Max)	13AWG
Wire Gauge (Min)	17AWG
Wire Insulation Support	With
Wire Size	2050 – 5180
