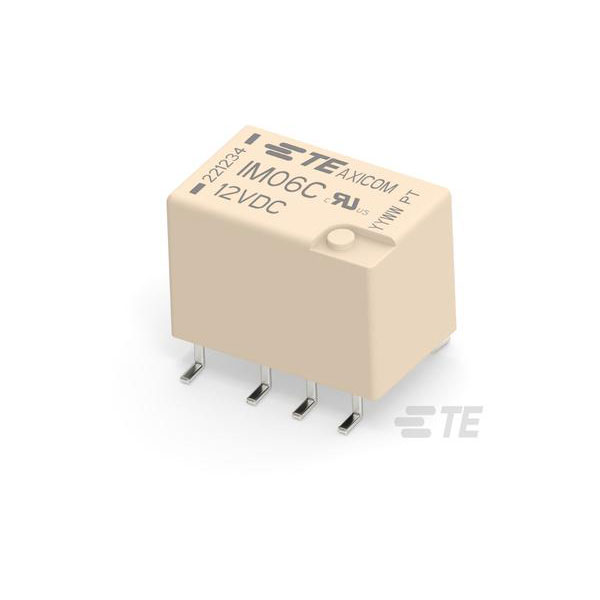

TE Connectivity 9-1462037-9 Relay PCB 140MW 12V 9 Low Signal

Inc VAT

Qty	Unit Price (Ex VAT)
1000+	£2.05

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1000

Available to back orderBack-order availability date - 13/07/2026

The TE Connectivity 9-1462037-9 is a compact relay designed for low signal applications.

It features a power rating of 140 milliwatts and operates with a 12-volt DC coil.

This relay is ideal for printed circuit board (PCB) mounting and is commonly used in telecommunications and industrial control systems.

Its design ensures reliable performance in sensitive electronic applications.

Type	Signal Relays
Coil Voltage	12V
Switching Current	2A
Coil Resistance	1.029kRO
Length	10.0mm
Width	6mm
Height	5.6mm
Actuating System	DC
Coil Current	11.67mA
Coil Power	140mW
Coil Type	Non-Latching
Coil Voltage (DC)	12v
Contact Current Rating	2a
Contact Material	Gold, Ruthenium
Contact Plating	Gold
Contact Voltage Rating (DC)	220v
DC Rated Voltage	220v
Depth	7.5mm
ELV	Compliant
Insertion Loss	-0.03dB
Max Current Rating	2a
Max Voltage Rating (AC)	250v
Max Voltage Rating (DC)	220v
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Mount	Surface Mount
Operate Time	1ms
Packaging	Tape and Reel
Radiation Hardening	No
Relay Type	Relay
Release Time	3ms
RoHS Compliant	Yes
Series	IM, AXICOM
Termination	PCB
Throw Configuration	DPDT
Voltage Rating (AC)	250v
