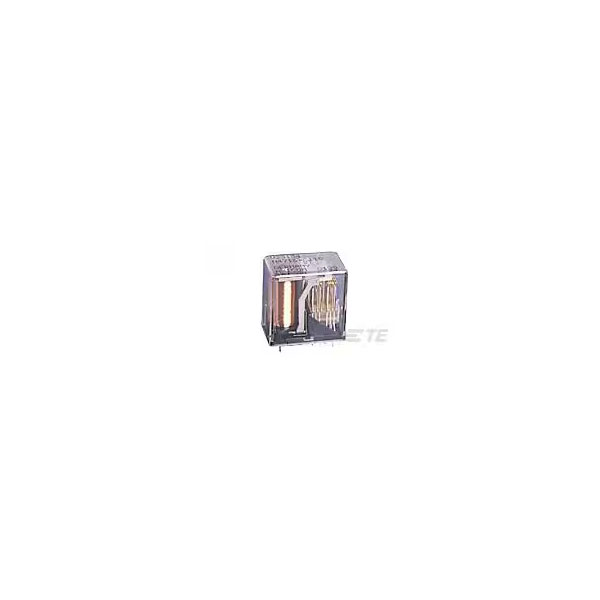

TE Connectivity 9-1393808-5 V23154D Low Signal Relay PCB Mounted

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£125.45

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 2

Available to back orderBack order, lead time 4 months

TE Connectivity's relay, 9-1393808-5, is a V23154D low signal relay designed for PCB mounting.

It features a compact design, high sensitivity, and a low profile.

This relay is typically used in telecommunication systems, measurement equipment, and industrial controls.

The product ensures reliable switching of low-level signals in various electronic applications.

Type	Relay
Switching Current	2A
Coil Resistance	890r
Length	30 mm
Width	19 mm
Height	30mm
Actuating System	AC/DC
Coil Current	27mA
Coil Power	647mW
Coil Type	Non-Latching
Coil Voltage (DC)	24v
Contact Current Rating	5a
Contact Material	Nickel
Contact Plating	Gold
Contact Type	Bifurcated contacts
Contact Voltage Rating (DC)	150v
ELV	Compliant
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Mount	Socket
Operate Time	7.5ms
Package Quantity	10
Packaging	Box
Power Consumption	800mW
Ratings	IP30
Relay Type	Relay
Release Time	3ms
RoHS Compliant	Yes
Series	V23154, AXICOM
Termination	PCB
Throw Configuration	4PDT
Weight	25g
