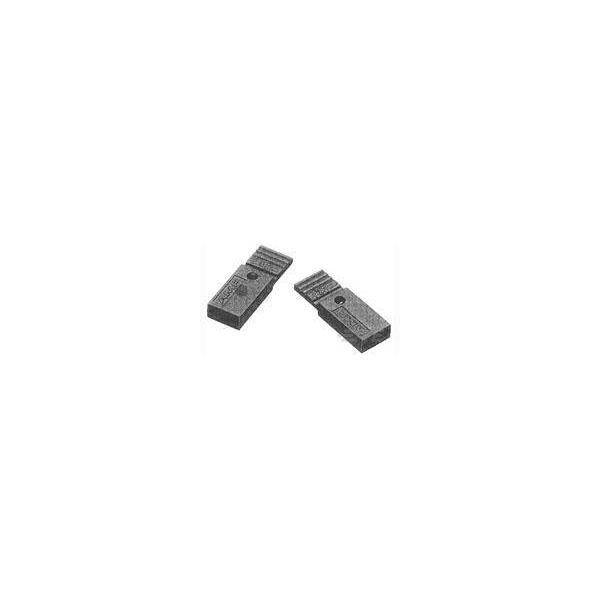

TE Connectivity 881545-2 Shunts With Handle 2 Pos 30AU 1 pc Bag

The TE Connectivity 881545-2 is a shunt designed for bridging electrical connections efficiently. It is used primarily in circuit applications requiring reliable jumper functionality. Ideal for use in electronic devices, the shunt offers durable performance for consistent connectivity.

Type	Board-to-Board Jumpers & Shunts
Centerline (Pitch)	2.54mm
Circuit Application	Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector System	Board-to-Board
Contact Base Material	Phosphor Bronze
Contact Current Rating (Max)	3.0
Contact Finish Termination	Gold (Au) - with Nickel (Ni) barrier
Contact Gender	FEMALE
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	30
Housing Material	Thermoplastic
Insulator Color	YELLOW
Insulator Material	THERMOPLASTIC
Maximum Operating Temperature	105
Minimum Operating Temperature	-65
Misc Attribute	TE AMP Shunts
Mounting Style	STRAIGHT
Number Of Connectors	ONE
Number of Positions	2
Operating Temperature Range	-85 – 221
Packaging Method	Bag
Packaging Quantity	14000
Packaging Type	Bag
Plating Thickness	30u
Primary Product colour	Black
Product Height	.429
Rated Current (Signal)	3
Reliability	COMMERCIAL
Total Number of Contacts	2
UL Flammability Rating	UL 94V-0
