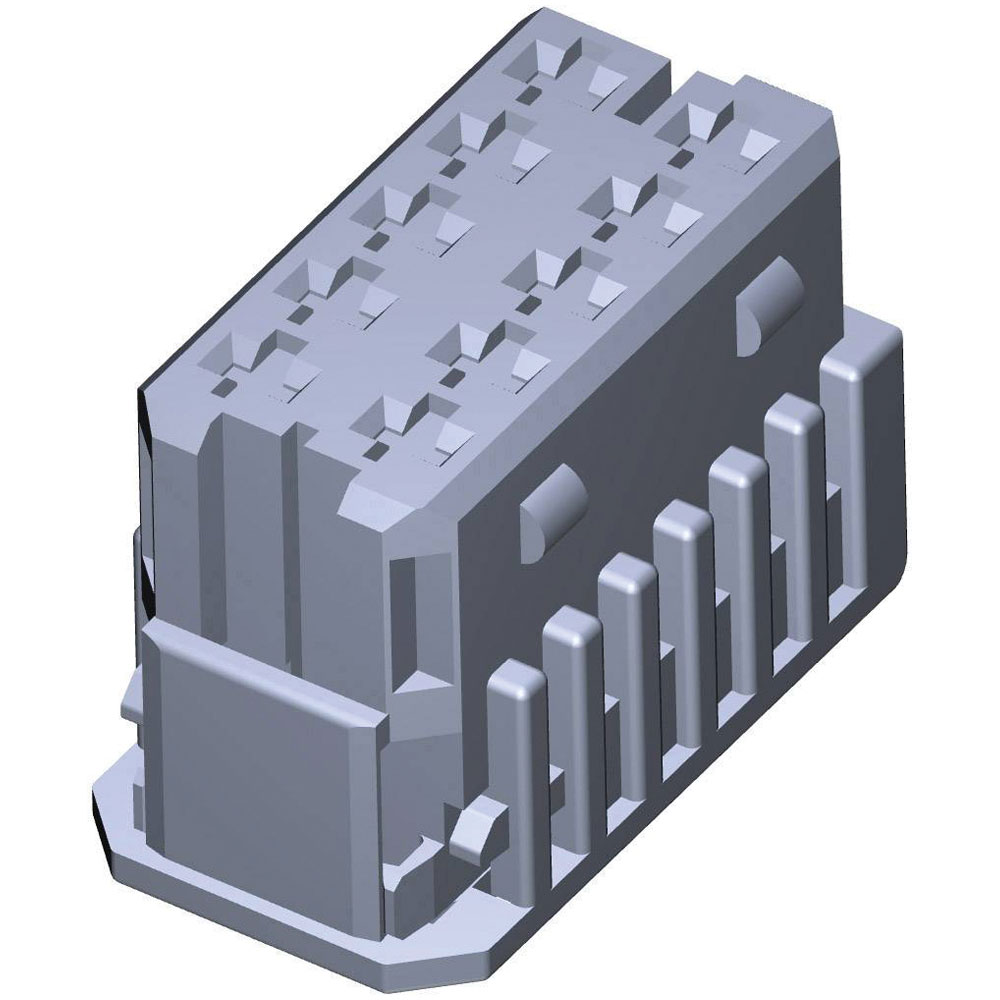

The TE Connectivity socket housing cable, model 8-968975-1, features 21 pins. It is designed for reliable and durable electrical connections in automotive and industrial applications. This product is part of the MCP series, known for its robust construction and ease of use.
| Type |
Socket, straight |
| Number of Contacts |
21 |
| Gender |
Receptacle |
| Number of Rows |
3 |
| Case Material |
PBT GF |
| Circuit Application |
Signal |
| Code |
A |
| Colour |
Brown |
| Connection |
Type C CEE 7/16 plug 2.8mm |
| Connector contact surface |
Tin plated |
| Connector System |
automotive |
| Contact Gender |
Female |
| Contact Material |
Copper Alloy |
| Contact Plating |
Tin |
| Contact Type |
Female Socket |
| Current Rating |
24A |
| Depth |
24mm |
| Dimensions |
(L x W x H) 24 x 41 x 25.4 mm |
| ELV |
Compliant |
| Height |
25.4mm |
| Housing Color |
Brown |
| Hybrid Connector |
No |
| Industrial packaging |
No |
| Insulation Material |
PBT GF |
| IP Rating |
IP67 |
| Length |
24mm |
| Mating Tab Width |
0.11inch |
| Maximum Operating Temperature |
248°C |
| Maximum Temperature |
+120°C |
| Min. temperature |
-40°C |
| Minimum Operating Temperature |
-40°C |
| Misc Attribute |
MCP |
| Mount |
Free Hanging, Cable |
| Nominal Voltage |
28V DC |
| Orientation |
Straight |
| Package Quantity |
900 |
| Packaging |
Carton |
| Pin shape |
Rectangular |
| Pins per row |
7 |
| Pitch |
5mm |
| Polarized |
No |
| Primary Type |
RECEPTACLE |
| Radiation Hardening |
No |
| Ratings |
IP67 |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Row Spacing |
0.217inch |
| Sealable |
No (Without) |
| Series |
MCP |
| Serviceable |
No |
| Strain Relief |
No (Without) |
| Termination |
Crimp |
| Width |
41mm |
| Wire Gauge (AWG) |
13AWG |
