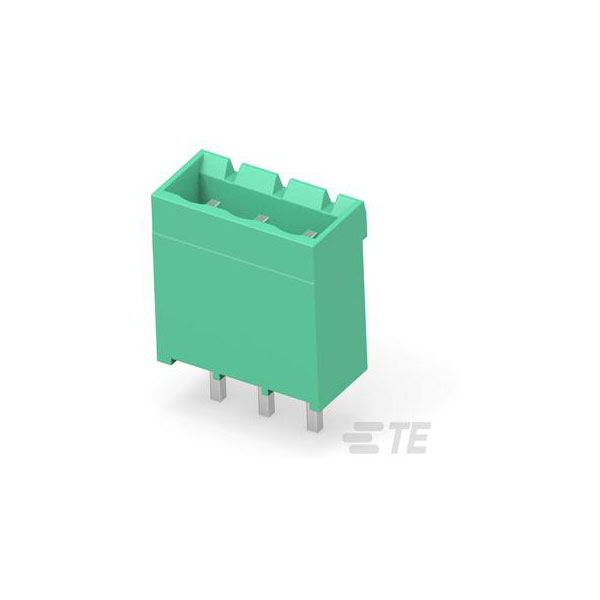

TE Connectivity 796636-3 Header 03P Vertical GRN Female Unshrouded Terminal

MPN: 796636-3
Brand: TE Connectivity
Order Code: 15-9096
Country of Origin: Italy

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
400+	£0.746

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 400

Available to back orderBack order, lead time 4 months

Product Details

TE Connectivity 796636-3 is a header terminal block with three vertical pins.

It is female, unshrouded, and comes in green.

This component is typically used in electrical and electronic circuits for secure and reliable connections.

The terminal block is suitable for both commercial and industrial applications.

Pitch	5.08mm
No of Ways Per Row	3
No. of Rows	1
Current Rating	15A
Colour	Green
Wire Gauge (AWG)	30 to 12 AWG
Wire Gauge (mm²)	N/A
Circuit Application	Power & Signal
Connector & Contact Terminates To	Printed Circuit Board
Connector Mounting Type	Board Mount
Connector System	Wire-to-Board
Contact Base Material	Copper Magnesium
Contact Mating Area Plating Material	Tin (Sn)
Eccn Code	EAR99
Header Type	Fully Shrouded
Housing Material	PA 66
HTS Code	8536.69.40.40
Military Spec	False
Operating Temperature Range	-40 – 221
Operating Voltage	300
Packaging Method	Box
Packaging Quantity	200
Primary Product colour	Green
Product Orientation	Vertical
REACH	Compliant
ROHS	Yes
Termination Method to PCB	Through Hole - Solder
Termination Post & Tail Length	.138
