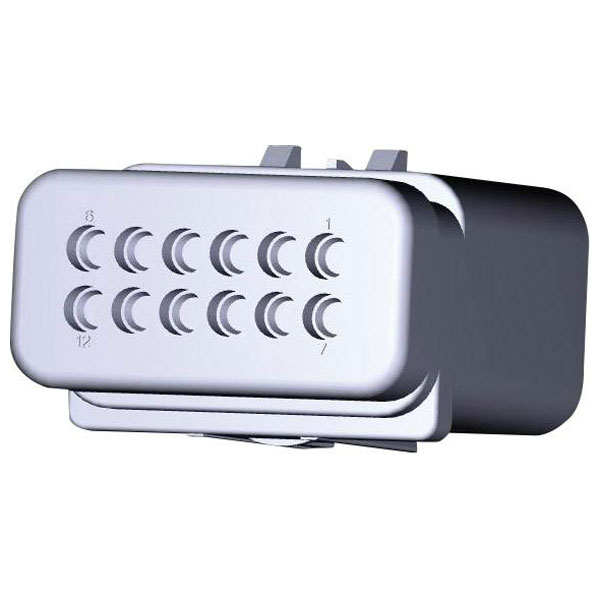

TE Connectivity 776539-3 AMPSEAL16 Pin Housing 12 Pins 1 pc

TE Connectivity
Order Code:

07-4941

Brand: TE Connectivity MPN: 776539-3 EAN-13: 2050002891234
Qty Unit Price (Ex VAT)
1+ £5.59
10+ £5.13
100+ £4.76
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
22 in stock, despatched in 4 working days

TE Connectivity manufactures the AMPSEAL16 pin housing cable, part number 776539-3, which features 12 pins. This durable connector is typically used in harsh environments for automotive and industrial applications. Key benefits include its secure fitting and resistance to vibration and moisture.
Type Plug, straight
Number of Contacts 12
Gender Female
Number of Rows 2
Body Material PBT
Case Material Thermoplastic material
Code C
Colour Yellow
Connector contact surface Tin plated
Connector System automotive
Contact Type Male Pin
Current Rating 13A
Depth 47.55mm
Dimensions (L x W x H) 26.65 x 47.55 x 37.6 mm
Flammability Rating UL94 HB
Height 37.6mm
Housing Color Yellow
Hybrid Connector No
Industrial packaging No
Insulation Material Thermoplastic material
IP Rating IP6K9K
Lead Free Lead Free
Length 26.65mm
Material Thermoplastic
Max Operating Temperature 125°C
Max. temperature +125°C
Min Operating Temperature -40°C
Min. temperature -40°C
Misc Attribute AMPSEAL16
Mount Free Hanging, Cable
Nominal Voltage 250V DC
Orientation Straight
Package Quantity 125
Packaging Bulk
Pin shape Circular
Pins per row 6
Pitch 0.177inch
Polarized Yes
RoHS Compliant Yes
Row Spacing 5.3mm
Sealable Yes (With)
Series AMPSEAL16
Serviceable Yes
Strain Relief Add By Accessory
Termination Crimp
Width 47.55mm
