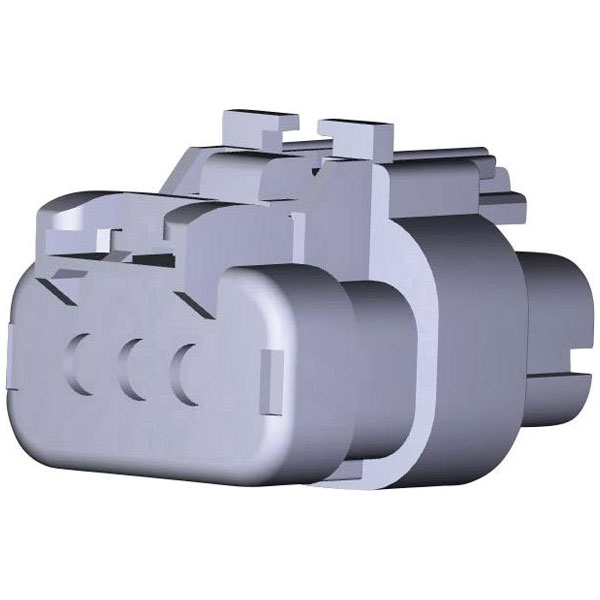

TE Connectivity 776429-1 AMPSEAL16 Socket Housing 3 Pins 1 pc

MPN: 776429-1
Brand: TE Connectivity
EAN-13: 2050002890275
Order Code: 07-4919
Country of Origin: Italy

RoHS Compliant
Free UK shipping available

View Full Product Range (10)

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£2.77
10+	£2.54
100+	£2.37

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1

Despatched within 4 working days - 129 in stock

Product Details
Product Range
Data Sheets
Quick Quote

TE Connectivity 776429-1 is an unshrouded male plug assembly with three positions.

It supports wire sizes from 18 to 14 AWG and comes in a red colour.

This plug is typically used in automotive applications where reliable connections are needed.

It offers durability and a secure fit for a variety of electrical systems.

Type	Socket, straight
Number of Contacts	3
Gender	Male
Number of Rows	1
Body Material	PBT
Case Material	Thermoplastic material
Code	A
Colour	Red
Connector contact surface	Tin plated
Connector System	automotive
Contact Type	Female Socket
Current Rating	13A
Dimensions	(L x W x H) 23.5 x 36.8 x 24.83 mm
Flammability Rating	UL94 HB
Height	24.83mm
Housing Color	Red
Hybrid Connector	No
Industrial packaging	No
Insulation Material	Thermoplastic material
IP Rating	IP6K9K
Length	23.5mm
Material	Thermoplastic
Max Operating Temperature	125°C
Max. temperature	+125°C
Min Operating Temperature	-40°C
Min. temperature	-40°C
Misc Attribute	AMPSEAL16
Mount	Free Hanging
Nominal Voltage	250V DC
Orientation	Straight
Package Quantity	22
Packaging	Bulk
Pin shape	Circular
Pins per row	3
Pitch	0.177inch
Polarized	Yes
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	Yes (With)
Series	AMPSEAL16
Serviceable	Yes
Strain Relief	Add By Accessory
Termination	Crimp
Width	36.8mm
