TE Connectivity 745253-6 AMPLIMITE HD-20 Socket Pin Brass AWG 26-22

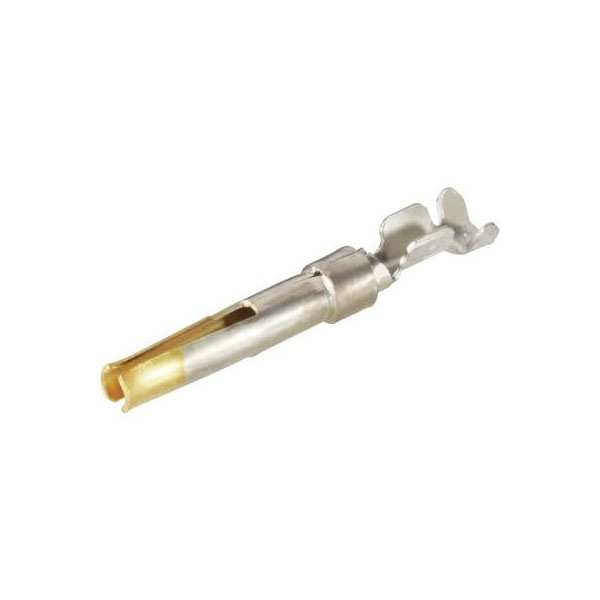

Image Representative of Range

TE Connectivity 745253-6 AMPLIMITE HD-20 Socket Pin Brass AWG 26-22

TE Connectivity
Order Code:

07-4865

Brand: TE Connectivity MPN: 745253-6 EAN-13: 2050002865921
Qty Unit Price (Ex VAT)
25+ £0.171
250+ £0.170
750+ £0.169
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
428 in stock, despatched in 4 working days

TE Connectivity manufactures the AMPLIMITE HD-20 (HDP-20) socket pin, suitable for wire sizes ranging from 26 AWG to 22 AWG. The socket pin is made from brass, enhancing conductivity and durability. It is typically used in data and signal applications for connectors that require reliable electrical connections.
Type Socket pin
Plug / Socket Socket
Mounting Type Crimp
Plating Material Nickel
AWG (min.) 26
AWG max. 22
Circuit Application Signal
Compatible Insulation Diameter Range .04 – .05
Contact Base Material Phosphor Bronze
Contact Current Rating (Max) 2
Contact Gender Female
Contact Material Brass
Contact Mating Area Plating Material Gold (Au)
Contact Mating Area Plating Material Thickness 30
Contact Plating Gold
Contact Style Crimp
Contact Type Socket
Depth 2.67mm
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Insulation Diameter 1.27mm
Lead Free Lead Free
Length 14.35mm
Material Metal
Max Current Rating 3.1a
Max Operating Temperature 105°C
Max Supply Voltage (AC) 250v
Max Voltage Rating (AC) 250v
Min Operating Temperature -55°C
Misc Attribute AMPLIMITE HD-20 (HDP-20)
Mount Cable
Number of Contacts 1
Number of Ports 1
Number of Positions 1
Operating Temperature Range -67 – 221
Orientation Straight
Package Quantity 1000
Packaging Loose Piece
Packaging Method Loose Piece
Packaging Quantity 1000
Product Terminates To Wire & Cable
Radiation Hardening No
Reach SVHC Compliant No
RoHS Compliant Yes
Series AMPLIMITE HDP-20
Shielding Unshielded
Termination Crimp
Termination Method to Wire & Cable Crimp
Wire Gauge (Max) 22AWG
Wire Gauge (Min) 26AWG
Wire Insulation Support With
Wire Size 26 – 22
Wire/Cable Gauge 22AWG
