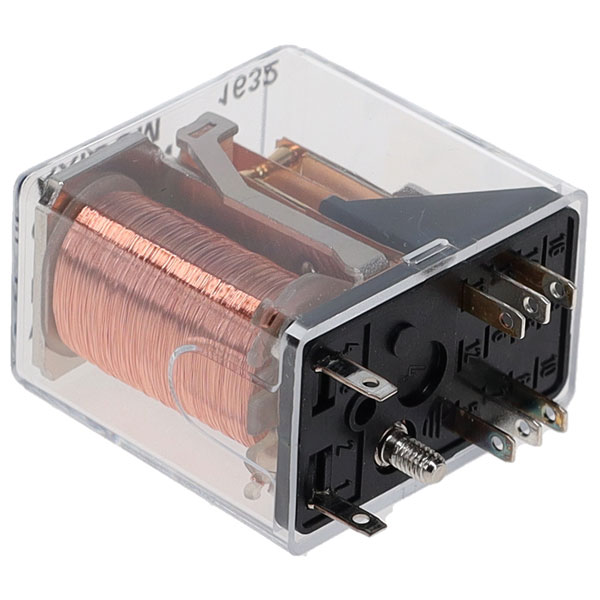

TE Connectivity 7-1393808-6 Low Signal Relay-PCB V23154D Compact Efficient

Inc VAT

Qty	Unit Price (Ex VAT)
2+	£153.31

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 2

Available to back orderBack-order availability date - 09/08/2026

The TE Connectivity 7-1393808-6 is a compact, efficient low signal relay designed for PCB applications.

It features high sensitivity and reliable switching for signal-level loads.

Its typical applications include telecommunications, office equipment, and industrial control systems.

The relay's small size and efficient performance make it ideal for space-constrained environments.

Type	Relay
Coil Resistance	550r
Length	30 mm
Width	19 mm
Height	30mm
Actuating System	AC/DC
Coil Current	36.36mA
Coil Power	144mW
Coil Type	Non-Latching
Coil Voltage (DC)	20v
Contact Current Rating	2a
Contact Material	Gold
Contact Plating	Gold
Contact Voltage Rating (DC)	250v
Depth	30mm
ELV	Compliant
Max Current Rating	5a
Max Voltage Rating (AC)	250v
Max Voltage Rating (DC)	250v
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Mount	Socketable, Plug-In
Operate Time	7.5ms
Packaging	Box
Power Consumption	800mW
Relay Type	Relay
Release Time	3ms
RoHS Compliant	Yes
Series	V23154, AXICOM
Termination	Plug
Throw Configuration	DPDT
Voltage Rating (AC)	250v
Weight	25g
