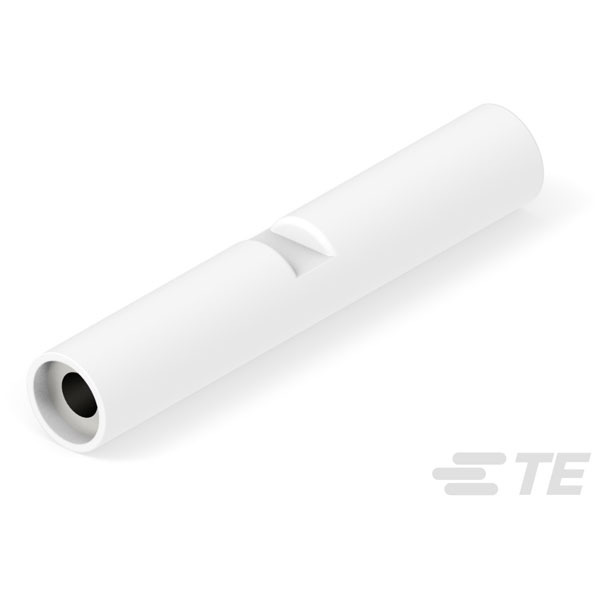

TE Connectivity 696428-1 Terminals Splice Butt PVF2 PIDG 16-14

MPN: 696428-1
Brand: TE Connectivity
Order Code: 15-2606
Country of Origin: USA

RoHS Compliant

Inc VAT

Qty	Unit Price (Ex VAT)
100+	£2.06

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 100

Despatched within 5 working days - 200 in stock

Product Details

TE Connectivity's 696428-1 is a splice terminal designed for electrical connections.

It features a butt splice design and is rated for 16-14 AWG wire sizes.

The durable PVF2 construction ensures reliable performance and connectivity.

This product is commonly used in automotive and industrial applications where secure and efficient splicing is needed.

Type	Splices
Max Wire Size	2050 – 5180
Insulation	Fully Insulated
Colour	Blue
Barrel Type	Closed
Compatible Insulation Diameter Range	.15
Contact Base Material	Copper
Contact Plating	Tin
ELV	Compliant
Government Qualified	No
Insulated Wire Support	Yes
Insulation Diameter	0.15inch
Insulation Material	Nylon
Lead Free	Not Applicable
Length	32.13mm
Material	Copper
Number of Wire Entries	2
Pack Qty	1000
Package Quantity	1000
Packaging	Loose Piece
Packaging Method	Loose Piece
Plating	Tin
Product Length	1.265
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No
Series	PIDG
Terminal Plating Material	Tin
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Wire Gauge (Max)	16AWG
Wire Gauge (Min)	14AWG
Wire Insulation Support	With
Wire/Cable Type	Discrete
