TE Connectivity 66741-2 CPC Bullet Connector Socket Single Contact

Discontinued

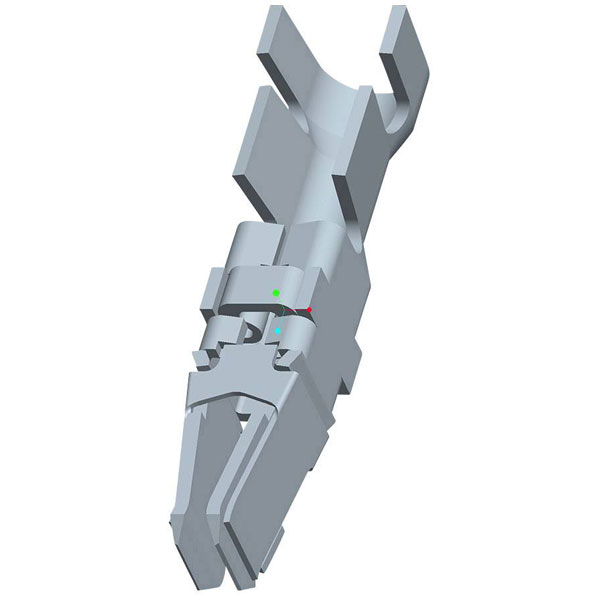

TE Connectivity's 66741-2 is a Type XII female unshrouded contact.

This contact features a low-profile design for efficient connectivity.

It offers secure wire-to-wire connections and is typically used in automotive and industrial applications.

The contact is designed for reliability in high-vibration environments.

Type	Socket
Number of Contacts	1
Gender	Female
Number of Rows	N/A
Circuit Application	Power
Compatible Insulation Diameter Range	.19 – .22
Connection	Crimp
Connection Angle	180°
Contact Base Material	Copper
Contact Current Rating (Max)	35
Contact Gender	Female
Contact Material	Copper
Contact Mating Area Plating Material	Silver (Ag)
Contact Mating Area Plating Material Thickness	100
Contact Plating	Silver
Contact Style	Socket
Contact Type	Socket
Contact Underplating Material	Copper
Current Rating	13A
Depth	7.11mm
ELV	Compliant
Height	7.62mm
Insulation Diameter	5.59mm
Length	32.18mm
Mating Tab Thickness	.105
Mating Tab Width	.23
Maximum Temperature	+125°C
Min. temperature	-55°C
Misc Attribute	CPC Baureihe 3
Mount	Cable
Nominal Voltage	1500V AC
Operating Temperature Range	-67 – 257
Orientation	Straight
Package Quantity	100
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	100
Product Terminates To	Wire & Cable
Radiation Hardening	No
RoHS Compliant	Yes
Series	CPC
Shielding	Unshielded
Strain Relief	No (Without)
Termination	Crimp
Termination Method to Wire & Cable	Crimp
Wire Gauge (AWG)	10AWG
Wire Insulation Support	With
Wire Size	10
Wire/Cable Type	Discrete
