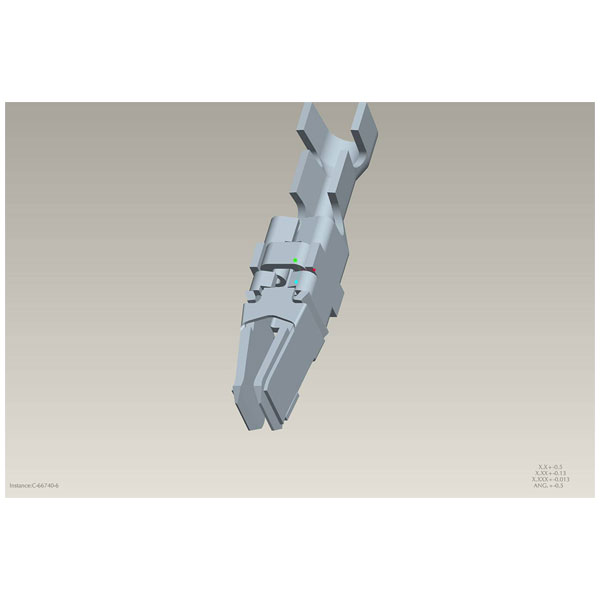

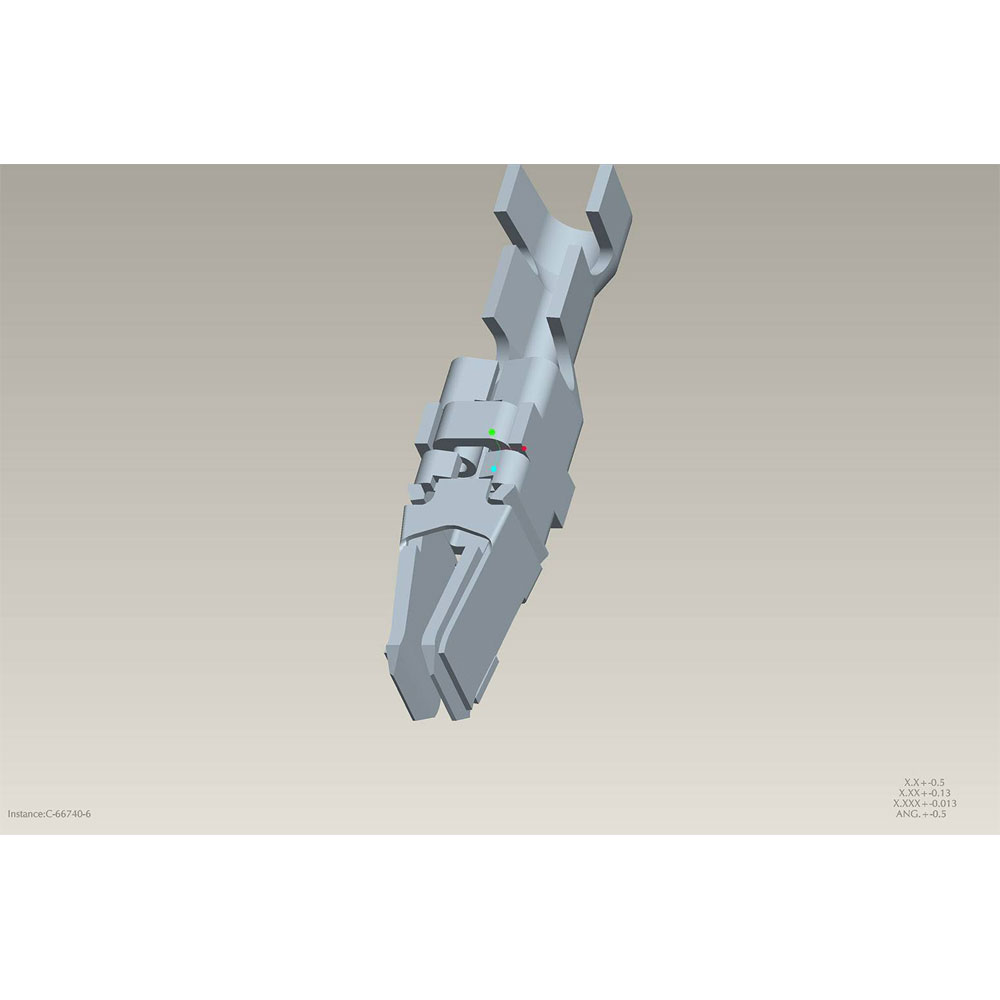

TE Connectivity 66740-6 is a female unshrouded pin and socket connector with 16 pins.
It features a durable design for reliable electrical connections.
The connector is suitable for various electronic applications, including computer and communication equipment.
Its compact size allows for efficient use in space-constrained environments.
| Type |
Socket |
| Gender |
Female |
| Circuit Application |
Power |
| Compatible Insulation Diameter Range |
.135 – .16 |
| Connection |
Crimp |
| Connection Angle |
180° |
| Contact Base Material |
Copper |
| Contact Current Rating (Max) |
35 |
| Contact Gender |
Female |
| Contact Material |
Copper |
| Contact Mating Area Plating Material |
Gold (Au) |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Type |
Socket |
| Contact Underplating Material |
Copper |
| Current Rating |
13A |
| Depth |
5.58mm |
| ELV |
Compliant |
| Height |
6.09mm |
| Insulation Diameter |
4.06mm |
| Lead Free |
Lead Free |
| Length |
32.18mm |
| Mating Tab Thickness |
.105 |
| Mating Tab Width |
.23 |
| Max. temperature |
+85°C |
| Min. temperature |
-25°C |
| Misc Attribute |
CPC Baureihe 3 |
| Mount |
Cable |
| Operating Temperature Range |
-67 – 257 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Packaging |
Bag |
| Packaging Method |
Bag |
| Packaging Quantity |
100 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
CPC |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Wire Gauge (AWG) |
16AWG |
| Wire Gauge (Max) |
16AWG |
| Wire Gauge (Min) |
12AWG |
| Wire Insulation Support |
With |
| Wire Size |
16 |
| Wire/Cable Type |
Discrete |
