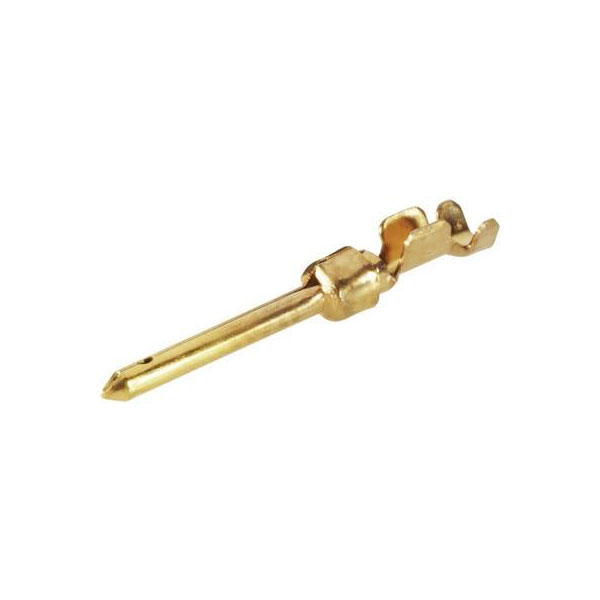

The TE Connectivity 66506-9 is a connector accessory designed for cables with a minimum diameter of 0.05 inches.
It features a female configuration suitable for secure contact in electrical systems.
The product is ideal for use in automotive or industrial applications requiring reliable electrical connections.
The high-quality design ensures durability and efficiency in harsh conditions.
| Type |
Connector pin |
| Plug / Socket |
Socket |
| Mounting Type |
Crimp |
| Plating Material |
Gold |
| AWG (min.) |
24 |
| AWG max. |
20 |
| Circuit Application |
Signal |
| Compatible Insulation Diameter Range |
.05 – .06 |
| Contact Base Material |
Brass |
| Contact Current Rating (Max) |
2 |
| Contact Gender |
Male |
| Contact Material |
Brass |
| Contact Mating Area Plating Material |
Gold Flash |
| Contact Mating Area Plating Material Thickness |
30 |
| Contact Plating |
Gold |
| Contact Style |
Crimp |
| Contact Type |
Pin |
| Depth |
2.67mm |
| ELV |
Compliant |
| Gender |
Male |
| Insulation Diameter |
0.06inch |
| Lead Free |
Lead Free |
| Length |
14.86mm |
| Max Current Rating |
2a |
| Max Operating Temperature |
105°C |
| Min Operating Temperature |
-55°C |
| Misc Attribute |
AMPLIMITE HD-20 (HDP-20) |
| Mount |
Cable |
| Number of Contacts |
1 |
| Number of Ports |
1 |
| Operating Temperature Range |
-67 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating |
Gold |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
AMPLIMITE HDP-20 |
| Shielding |
Unshielded |
| Termination |
Crimp |
| Termination Method to Wire & Cable |
Crimp |
| Voltage Rating |
250v |
| Wire Gauge (Max) |
24AWG |
| Wire Gauge (Min) |
20AWG |
| Wire Insulation Support |
With |
| Wire Size |
24 – 20 |
| Wire/Cable Gauge |
20AWG |
