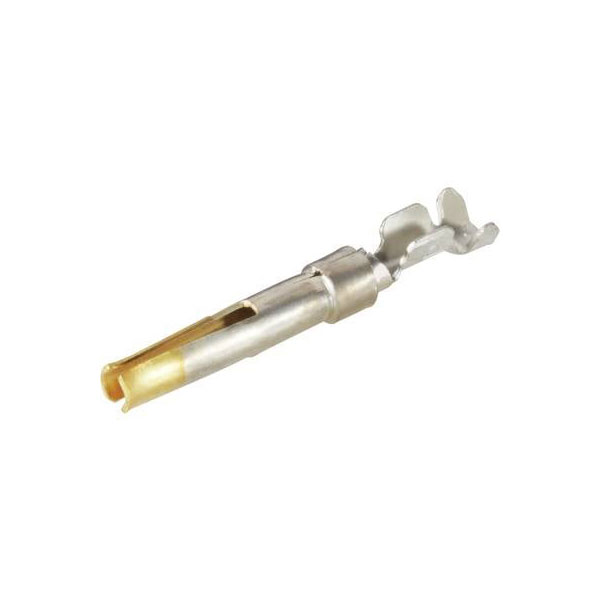

TE Connectivity 66504-9 Socket Pin Brass AWG 24-20 1 Piece

Image Representative of Range

TE Connectivity 66504-9 Socket Pin Brass AWG 24-20 1 Piece

TE Connectivity
Order Code:

07-4827

Brand: TE Connectivity MPN: 66504-9 EAN-13: 2050002866065
Qty Unit Price (Ex VAT)
20+ £0.270
500+ £0.250
1250+ £0.240
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 1
473 in stock, despatched in 4 working days

TE Connectivity's 66504-9 is a socket contact for D-sub connectors, designed for female, unshrouded configurations.

Its reliable build ensures secure electrical connections, commonly used in industries requiring robust interconnects.

The contact is suitable for both commercial and industrial applications, providing versatility.

It is often employed in data and signal transmission systems.


Type Socket pin
Plug / Socket Socket
Mounting Type Crimp
Plating Material Gold plated
AWG (min.) 24
AWG max. 20
Circuit Application Signal
Contact Base Material Copper Tin Alloy
Contact Current Rating (Max) 2
Contact Gender Female
Contact Material Brass
Contact Mating Area Plating Material Gold (Au)
Contact Plating Gold
Contact Style Socket
Contact Type Socket
Current Rating 2a
Depth 2.67mm
Gender Female
Insulation Diameter -1.52mm
Lead Free Lead Free
Length 14.1mm
Max Current Rating 2a
Mount Cable
Number of Contacts 1
Number of Ports 1
Operating Temperature Range -67 – 221
Orientation Straight
Package Quantity 1000
Packaging Loose Piece
Product Terminates To Wire & Cable
Radiation Hardening No
Reach SVHC Compliant No
RoHS Compliant Yes
Series AMPLIMITE HDP-20
Shielding Unshielded
Termination Crimp
Termination Method to Wire & Cable Crimp
Voltage Rating 250v
Wire Gauge (Max) 20AWG
Wire Gauge (Min) 24AWG
Wire Size 24 – 20
Wire/Cable Gauge 20AWG
