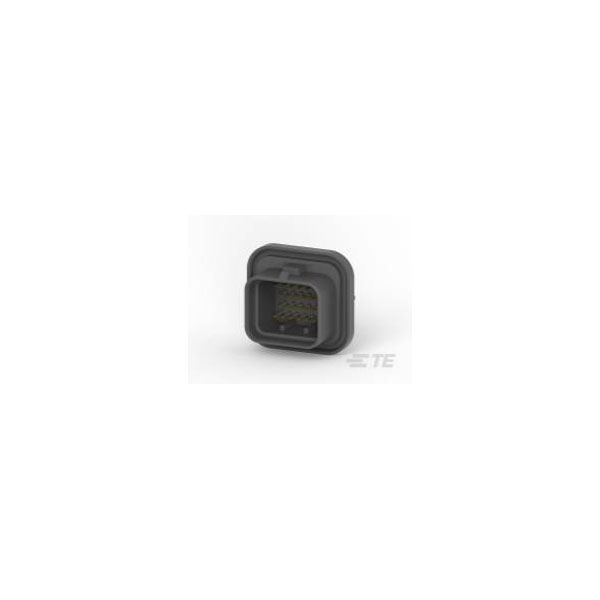

TE Connectivity 6473418-1 SUPER SEAL Tube 26POS Cap Assy V AU

TE Connectivity manufactures the 6473418-1 ICT Superseal Connector, known for its reliable sealing and durability. This connector offers strong resistance to water and dust, making it suitable for harsh environmental conditions. It is typically used in automotive and industrial applications where secure connections are critical.

Type	TE AMP ICT Superseal Connectors
Number of Contacts	26
Gender	Female
Number of Rows	4
Colour	Black
Connector System	Wire-to-Device
Contact Finish - Mating	GOLD
Contact Material	Brass
Contact Mating Length	0.276inch
Contact Plating	Gold
Contact Shape	Circular
Contact Type	Male Pin
Depth	36.5mm
ELV	Compliant
Flammability Rating	UL94 V-0
Height	27.9mm
Insulation Material	Polyester
Length	36.5mm
Max Voltage Rating (DC)	250v
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP ICT Superseal Connectors
Mount	Through Hole
Number of Signal Positions	26
Operating Supply Voltage	250v
Orientation	Straight
Package Quantity	357
Packaging	Rail/Tube
Packaging Type	Tube
PCB Mount Alignment	Yes (With)
PCB Mount Retention	Without
Pitch	0.118inch
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	Yes (With)
Series	Superseal
Shielding	Unshielded
Termination	Solder
Voltage Rating	250v
Width	39mm
