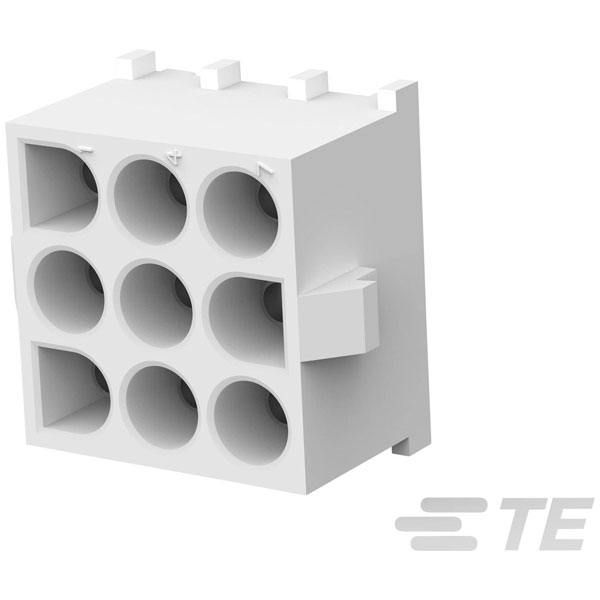

TE Connectivity 643426-1 MATE-N-LOK Socket Housing 9 Pins 6.35mm Spacing

TE Connectivity's socket housing PCB MATE-N-LOK features a total of nine pins with a contact spacing of 6.35 mm. It is designed for reliable and secure connections in electrical systems and is suitable for various industrial and commercial applications. This part is particularly useful for PCB connections where space and secure mating are essential considerations.

Type	Socket housing PCB
Pitch	6.35mm
Number of Ways	9
Number of Rows	3
Mounting Type	Board Mount
Mounting Direction	Vertical
Approvals	CSA
Board contact surface	Tin plated
Body/Shell Style	SOCKET
Case Material	Polyamide
Circuit Application	Power
Color	White
Colour	Black
Compatible With Agency/Standards Products	VDE
Compatible With Approved Standards Products	UL E28476
Connection	Print
Connector & Contact Terminates To	Printed Circuit Board
Connector coating thickness	3.81µm
Connector Contact Load Condition	Fully Loaded
Connector contact surface	Tin plated
Connector Height	.55
Connector Length	.8
Connector Product Type	Connector Assembly
Connector System	wire-to-board
Connector Type	Plug, vertical mount
Connector Width	.8
Contact Base Material	Phosphor Bronze
Contact Current Rating	12a
Contact Current Rating (Max)	12
Contact Finish - Mating	TIN
Contact Finish - Termination	TIN
Contact Gender	Female
Contact Layout	Matrix
Contact Material	Bronze
Contact Mating Area Plating Material	Pre-Tin
Contact Mating Area Plating Material Thickness	150 – 200
Contact Plating	Tin
Contact Retention	No (Without)
Contact Shape	Circular
Contact Shape & Form	Round
Contact Type	Socket
Contact Underplating Material	Nickel
Contact Underplating Material Thickness	50 – 70
CS	6.35mm
Current Rating	19a
Dimensions	(L x W x H) 20.32 x 20.32 x 13.97 mm
DIN Conformance	No
ELV	Compliant
Empty Shell	No
Filter Feature	No
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Rating	Standard Part - Not Glow Wire
Header Type	Fully Shrouded
Height	13.97mm
Housing Color	Black
Housing Material	Nylon
IEC Conformance	No
Insulation Color	Natural
Insulation Material	Nylon
Length	20.32mm
Manufacturer Series	643426
Mating Alignment	With
Mating Alignment Type	Polarization
Mating Retention	With
Mating Retention Type	Locking Tab
Max Voltage Rating (AC)	600v
Maximum Operating Temperature	221°C
Maximum Temperature	+105°C
MIL Conformance	No
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mixed Contacts	No
Mount	Through Hole, Board
Nominal Current	12A
Nominal current - rounded value	12A
Nominal Voltage	600V AC
Number of Circuits	9
Number of Columns	3
Number of Contacts	9
Number of Ports	1
Number of Positions	9
Number of Power Positions	9
Operating Temperature (Max)	221
Operating Temperature Range	-40 – 221
Operating Voltage	600
Option	General Purpose
Orientation	Straight
Package Quantity	100
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	100
Panel Mount Feature	Without
PCB Connector Type	PCB Mount Header
PCB Contact Termination Area Plating Material	Pre-Tin
PCB Contact Termination Area Plating Material Thickness	150 – 200
PCB Mount Alignment	With
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	3.18mm
PCB Thickness (Recommended)	.062
Pin shape	Planar
Pins per row	3
Primary Product colour	Natural
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	0.25mm
Row-to-Row Spacing	.25
Sealable	No
Series	MATE-N-LOK
Shell Material	Polyamide
Strain Relief	No (Without)
Termination	Solder
Termination Method to PCB	Through Hole - Solder
Termination Post & Tail Length	.14
UL Flammability Rating	UL 94V-0
UL Rating	Recognized
VDE Tested	Yes
Voltage Rating	600v
Width	20.32mm
