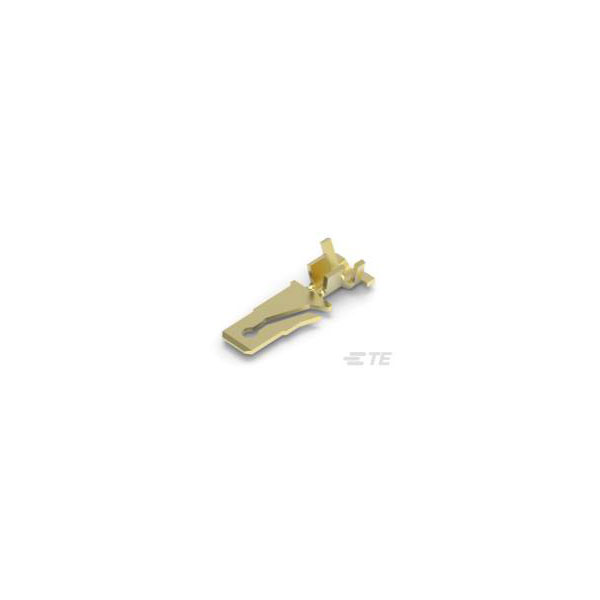

TE Connectivity 641256-1 Fastin-Faston Blade Tab 250 18-14AWG BR LP

TE Connectivity manufactures the 641256-1 crimp connector, known as the FASTIN-FASTON blade terminal. It features a 6.3 mm blade size and is designed for secure and reliable electrical connections in various applications. Typically used in automotive and industrial environments, this terminal ensures efficient current transmission in wiring systems.

Insulation	Insulated
Colour	Yellow
Tab Width	0.25inch
Tab Thickness	0.032inch
Gender	Male
Barrel Type	Open
Compatible Insulation Diameter Range	.142
Contact Base Material	Brass
Crimp Type	F-Crimp
ELV	Compliant
Insulated Wire Support	Yes
Insulation Diameter	3.61mm
Insulation Option	Uninsulated
Lead Free	Not Applicable
Length	1.015inch
Material	Brass
Mating Tab Width	.25
Misc Attribute	TE AMP FASTIN-FASTON
Mount	Free Hanging
Operating Temperature Range	-40 – 230
Orientation	Straight
Package Quantity	500
Packaging	Loose Piece
Packaging Method	Loose Piece/Carton
Packaging Quantity	500
Packaging Type	Bag
Plating	Unplated
Product Length	1.015
Product Terminates To	Wire & Cable
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Fastin-Faston
Terminal Orientation	Straight
Terminal Plating Material	Unplated
Termination	Tab
Type	Quick Disconnects
Wire Gauge (Max)	14AWG
Wire Gauge (Min)	18AWG
Wire Insulation Support	With
Wire Size	18 – 14
Wire/Cable Type	Discrete
