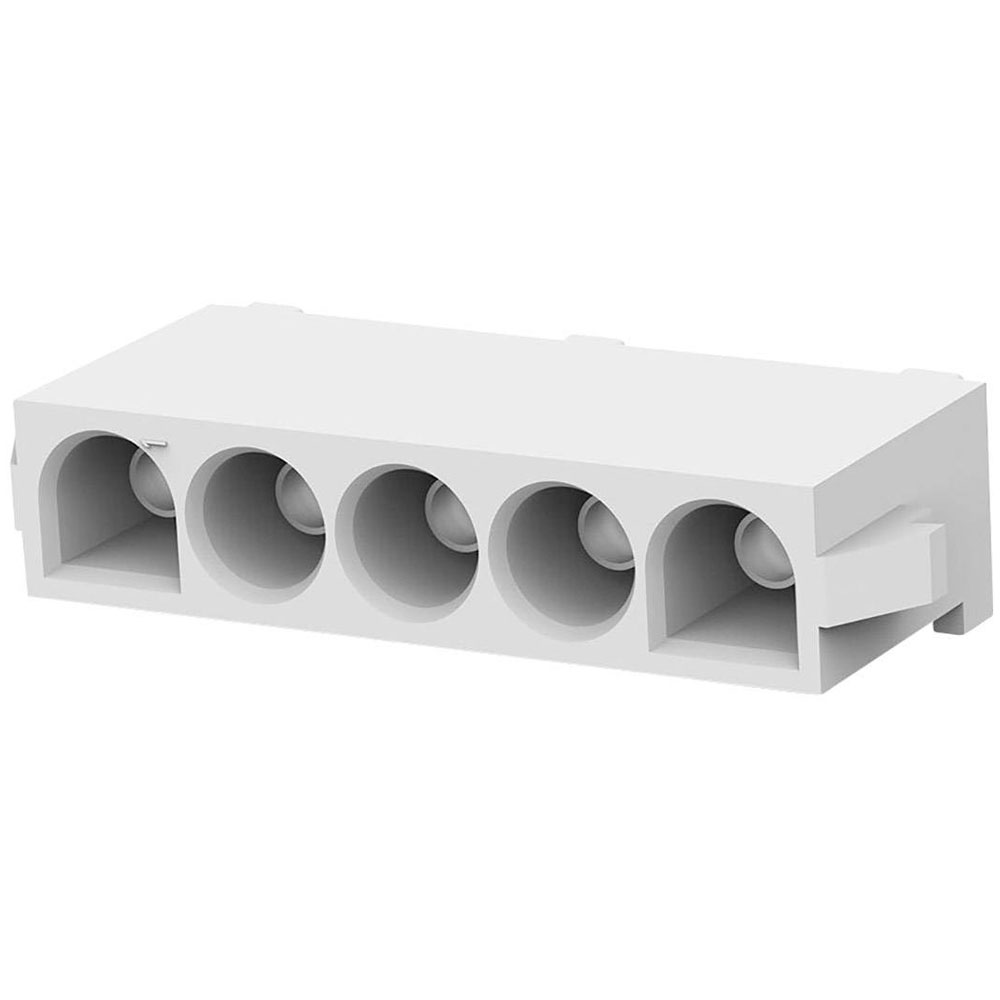

TE Connectivity 640901-3 MATE-N-LOK 5-Pin Socket Housing 6.35mm Spacing

The TE Connectivity 640901-3 is a socket housing PCB part designed for secure and reliable electrical connections. It features a total of five pins with a contact spacing of 6.35 mm. Typical applications for this product include use in industrial and electronic devices requiring robust connectivity solutions.

Type	Socket housing PCB
Pitch	6.35mm
Number of Ways	5
Number of Rows	1
Mounting Type	Board Mount
Mounting Direction	Vertical
Approvals	CSA
Board contact surface	Tin
Case Material	Polyamide
Circuit Application	Power
Color	White
Colour	Transparent
Compatible With Agency/Standards Products	VDE
Compatible With Approved Standards Products	UL E28476
Connection	Print
Connector & Contact Terminates To	Printed Circuit Board
Connector coating thickness	0.76µm
Connector Contact Load Condition	Fully Loaded
Connector contact surface	Gold
Connector Height	.55
Connector Length	1.3
Connector Product Type	Connector Assembly
Connector System	wire-to-board
Connector Type	Plug, vertical mount
Connector Width	.3
Contact Base Material	Phosphor Bronze
Contact Current Rating	12a
Contact Current Rating (Max)	12
Contact Gender	Female
Contact Layout	Inline
Contact Material	Bronze
Contact Mating Area Plating Material	Gold (Au)
Contact Mating Area Plating Material Thickness	30 – 36
Contact Plating	Gold, Tin
Contact Retention	No (Without)
Contact Shape & Form	Round
Contact Type	Socket
Contact Underplating Material	Nickel
Contact Underplating Material Thickness	50 – 70
CS	6.35mm
Current Rating	19a
Dimensions	(L x W x H) 33.02 x 13.97 x 7.62 mm
Flammability Rating	UL94 V-0
Glow Wire Rating	Standard Part - Not Glow Wire
Header Type	Fully Shrouded
Height	7.62mm
Housing Material	Nylon
Length	33.02mm
Mating Alignment	With
Mating Alignment Type	Polarization
Mating Retention	With
Mating Retention Type	Locking Tab
Max Voltage Rating (AC)	600v
Maximum Operating Temperature	221°C
Maximum Temperature	+105°C
Min. temperature	-40°C
Minimum Operating Temperature	-40°C
Mount	Through Hole
Nominal Current	12A
Nominal current - rounded value	12A
Nominal Voltage	600V AC
Number of Columns	5
Number of Contacts	5
Number of Ports	1
Number of Positions	5
Number of Power Positions	5
Operating Temperature (Max)	221
Operating Temperature Range	-40 – 221
Operating Voltage	600
Orientation	Straight
Package Quantity	100
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	100
Panel Mount Feature	Without
PCB Connector Type	PCB Mount Header
PCB Contact Termination Area Plating Material	Tin
PCB Contact Termination Area Plating Material Finish	Matte
PCB Contact Termination Area Plating Material Thickness	150 – 200
PCB Mount Alignment	Without
PCB Mount Retention	Without
PCB Mounting Orientation	Vertical
PCB Thickness	0.069inch
PCB Thickness (Recommended)	.062
Pin shape	Planar
Pins per row	5
Primary Product colour	Natural
Radiation Hardening	No
RoHS Compliant	Yes
Sealable	No
Series	MATE-N-LOK
Strain Relief	No (Without)
Termination	Solder
Termination Method to PCB	Through Hole - Solder
Termination Post & Tail Length	.14
UL Flammability Rating	UL 94V-0
UL Rating	Recognized
VDE Tested	Yes
Voltage Rating	600v
Width	13.97mm
