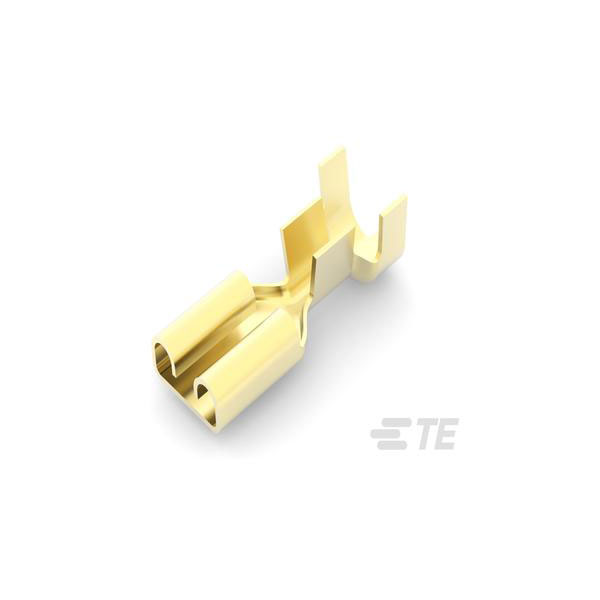

TE Connectivity 60249-1 is a female terminal that is compatible with 16-12 AWG wires.
It is an unshrouded type, providing a versatile connection solution in various electrical applications.
Available in a reel of 9000, this component is ideal for high-volume manufacturing processes.
Commonly used in automotive and industrial environments, it ensures secure wire termination.
| Insulation |
Non-Insulated |
| Tab Width |
0.25inch |
| Tab Thickness |
0.032inch |
| Gender |
Female |
| Barrel Type |
Open |
| Body Material |
Brass |
| Compatible Insulation Diameter Range |
.16 – .21 |
| Compatible With Agency/Standards Products |
CSA |
| Contact Base Material |
Brass |
| Crimp Type |
F-Crimp |
| Depth |
7.44mm |
| ELV |
Compliant |
| Insulated Wire Support |
Yes |
| Insulation Diameter |
5.33mm |
| Insulation Option |
Uninsulated |
| Length |
19.05mm |
| Material |
Brass |
| Mating Retention Type |
Locking Lance |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.25 |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Orientation |
Straight |
| Package Quantity |
9000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Strip/Reel |
| Packaging Quantity |
9000 |
| Plating |
Unplated |
| Product Length |
.75 |
| Product Terminates To |
Wire & Cable |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Series |
Fastin-Faston |
| Tab Length |
0.305inch |
| Terminal Material |
Brass |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Unplated |
| Termination |
Receptacle |
| Type |
Quick Disconnects |
| Wire Gauge (Max) |
12AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire Size |
16 – 12 |
| Wire/Cable Diameter |
5.33mm |
| Wire/Cable Gauge |
12AWG |
