TE Connectivity 6-160449-5 FASTON Connector Female Unshrouded 1.0-2.5mm²

Inc VAT

Qty	Unit Price (Ex VAT)
1500+	£0.247

Sign in for personalised pricing

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 1500

Despatched within 5 working days - 9,300 in stock

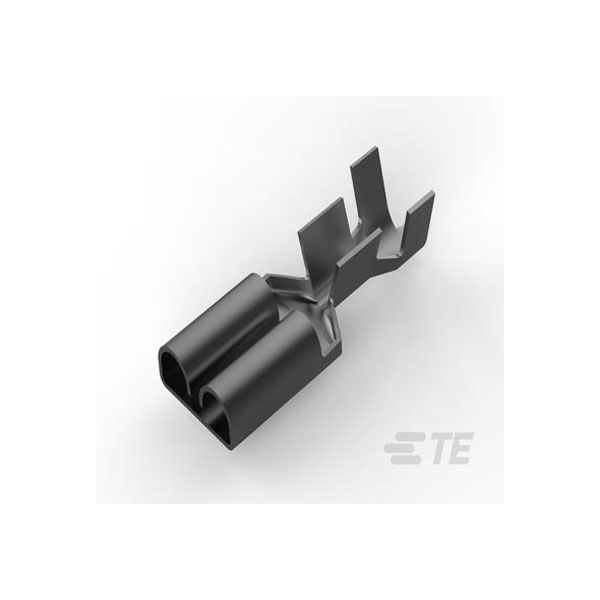

TE Connectivity's 6-160449-5 is a faston connector designed for female unshrouded terminations.

It supports wire sizes ranging from 1.0 to 2.5mm², ensuring versatile usage.

The connector is commonly applied in automotive and industrial equipment for efficient electrical connections.

Its robust construction enhances durability in demanding environments.

Insulation	Non-Insulated
Tab Width	0.25inch
Tab Thickness	0.032inch
Gender	Female
Barrel Type	Open
Compatible Insulation Diameter Range	.12 – .16
Contact Base Material	Brass
Contact Plating	Tin
Crimp Type	F-Crimp
ELV	Compliant
Flammability Rating	UL94 V-2
Insulated Wire Support	Yes
Insulation Diameter	4.06mm
Insulation Option	Uninsulated
Lead Free	Not Applicable
Length	19.2mm
Material	Brass
Mating Retention Type	Locking Lance
Mating Tab Thickness	.032
Mating Tab Width	.25
Mount	Free Hanging
Operating Temperature Range	-40 – 230
Orientation	Straight
Package Quantity	500
Packaging	Loose Piece
Packaging Method	Loose Piece/Carton
Packaging Quantity	500
Plating	Tin
Product Length	.755
Product Terminates To	Wire & Cable
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Series	Fastin-Faston
Tab Length	0.305inch
Terminal Material	Brass
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Receptacle
Type	Quick Disconnects
UL Flammability Rating	UL 94V-2
Wire Gauge (Max)	13AWG
Wire Gauge (Min)	17AWG
Wire Insulation Support	With
Wire Size	17 – 13
