TE Connectivity 6-1419102-3 T9AP1D52-24 Industrial Relay 24V DC

MPN: 6-1419102-3
Brand: TE Connectivity
EAN-13: 2050006509500
Order Code: 07-4720
Country of Origin: China

RoHS Compliant
Free UK shipping available

View Full Product Range (7)

Inc VAT

Qty	Unit Price (Ex VAT)
1+	£8.32

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched within 4 working days - 25 in stock

Product Details
Product Range
Quick Quote

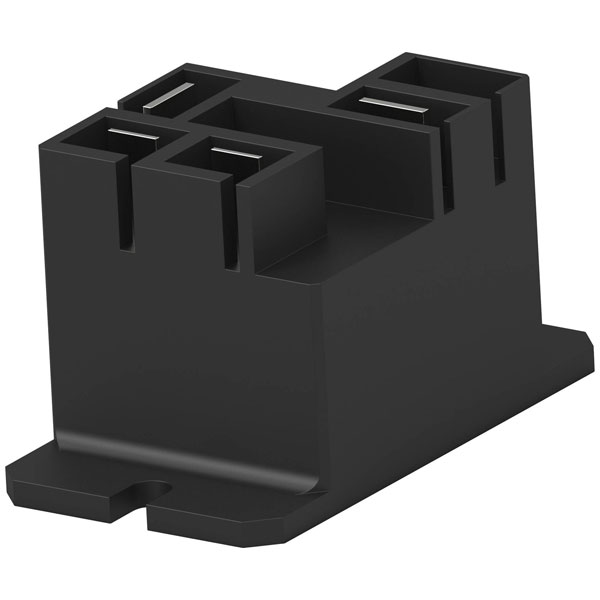

The TE Connectivity 6-1419102-3 is a single-pole, single-throw normally open relay designed for use with 24V DC systems.

It is flange-mounted, ensuring secure and stable installation.

The relay is suitable for applications in automotive and industrial control systems.

Its robust construction provides reliable performance in various environmental conditions.

Coil Voltage	24V DC
Contact Configuration	1NO
Coil Current	42mA
Coil Power	1w
Coil Resistance	576O
Coil Type	Non-Latching
Coil Voltage (DC)	24v
Colour	Black
Connection	Print
Contact Current Rating	30a
Contact Material	AgCdO
Contact Voltage Rating (AC)	277v
Creepage distance (coil/clips)	6.36mm
DC Rated Voltage	24v
Depth	27.43mm
Dimensions	(L x W x H) 32.5 x 27.4 x 27.9 mm
ELV	Non-Compliant
Height	27.9mm
Length	32.5mm
Max Operating Temperature	85°C
Max Voltage Rating (AC)	277v
Max. temperature	+85°C
Min Operating Temperature	-55°C
Minimum Temperature	-55°C
Misc Attribute	T9AP1D52-24
Mount	Panel
Nominal Voltage	24V DC
Operate Time	15ms
Package Quantity	50
Packaging	Bulk
Power Consumption	1w
Radiation Hardening	No
Reach SVHC Compliant	Unknown
Relay Type	General Purpose
Release Time	15ms
RoHS Compliant	Yes
Series	T9A
Termination	Quick Connect
Throw Configuration	SPST
Type	Industrial relay
Voltage Rating (AC)	277v
Weight	33g
Width	27.4mm
