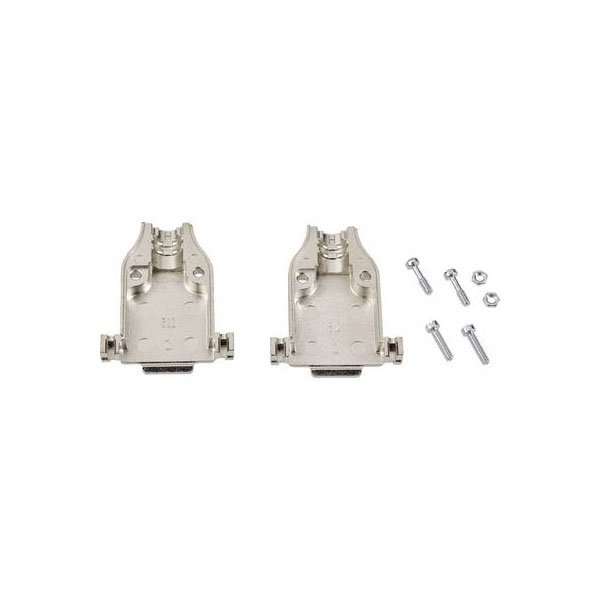

TE Connectivity 5745171-2 AMPLIMITE HD-20 D-Sub Housing 9 Pins Metal Silver

Discontinued

TE Connectivity's 5745171-2 is a connector accessory designed for male shrouded connectors.

It accommodates cable sizes ranging from 0.19 inches to 0.53 inches.

The accessory provides secure and reliable connections, enhancing protection against environmental factors.

It is typically used in telecommunications and industrial equipment applications.

Type	D-SUB housing
Plug / Socket	Plug
Mounting Type	BackShell Mounting
No. of Ways	9
Connection Angle	180°
Plating Material	Silver
Body Material	ZINC ALLOY
Cable diameter (details)	5.08mm
Case Material	Metal
Color	Silver
Compatible Insulation Diameter Range	.2
Depth	48.51mm
Factory colour	Silver
Height	15.74mm
Insulation Diameter	5.08mm
Length	30.86mm
Material	Metal
Misc Attribute	AMPLIMITE HD-20 (HDP-20)
Number of Contacts	9
Number of pins	9
Number of Positions	9
Orientation	Straight
Package Quantity	1
Package/Case	Metal
Packaging	Bag
Packaging Method	Bag
Packaging Quantity	1
Plating	Copper
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Series	AMPLIMITE
Shell Material	ZINC DIE CAST
Shell Size	E
Shielded	Yes
Shielding	Shielded
Thread Size	4-40
Wire/Cable Diameter	0.2inch
Wire/Cable Type	Round
