TE Connectivity 5415484-1 Mini-75 OHM SMB Plug Male Unshrouded Connector

Inc VAT

Qty	Unit Price (Ex VAT)
15+	£4.60

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 15

Available to back orderBack-order availability date - 18/07/2026

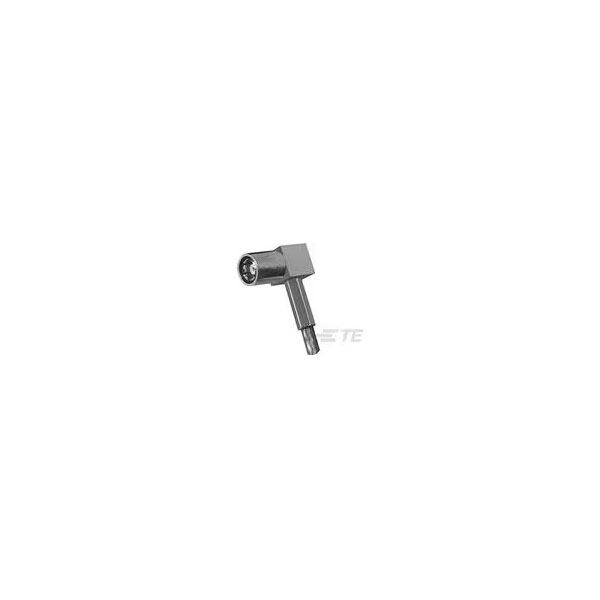

The TE Connectivity 5415484-1 is a Mini-75 ohm SMB plug male unshrouded connector.

It is designed for quick and reliable connections in RF applications.

With its compact size, it is ideal for use in telecommunications and broadcast equipment.

The connector ensures secure and efficient signal transmission in various electronic systems.

Impedance	75r
Mounting Direction	Right angle
Body Material	Zinc
Body Plating	Nickel
Center Contact Plating	Gold
Contact Material	Copper
Contact Plating	Gold, Nickel
Depth	16mm
Dielectric Material	PTFE
ELV	Compliant
Gender	Male
Housing Colour	Silver
Insulation Material	Polytetrafluoroethylene
Lead Free	Not Applicable
Length	13.7mm
Max Frequency	4GHz
Maximum Operating Temperature	165°C
Minimum Operating Temperature	-65°C
Mount	Free Hanging, Cable
Number of Ports	1
Operating Frequency	0 to 4 GHz
Orientation	Right Angle
Package Quantity	100
Package/Case	SMB
Packaging	Carton
Plating	Nickel
Polarity	Standard
Radiation Hardening	No
RoHS Compliant	Yes
Series	SMB, Mini
Termination	Crimp
