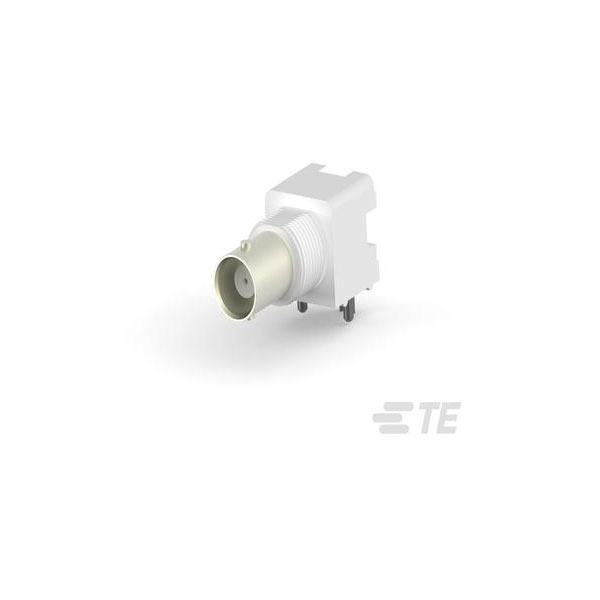

The TE Connectivity 5227161-3 BNC PCB connector features a right angle design with female terminations and mounting pins for secure attachment.
It is typically used in telecommunications, broadcasting, and networking equipment.
This connector ensures reliable signal integrity in RF applications.
Its robust construction supports high-frequency performance.
| Type |
Coax Connectors |
| Impedance |
50r |
| Mounting Direction |
Right angle |
| Body Material |
Zinc |
| Body Plating |
Nickel |
| Cable Type |
N/A (PCB Mount) |
| Colour |
White |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Panel Mount |
| Connector System |
Cable-to-Board |
| Contact Material |
Bronze |
| Contact Plating |
Gold |
| Depth |
14.76mm |
| Dielectric Material |
Polymethylpentene |
| Frequency |
4GHz |
| Gender |
Female |
| Height |
15.88mm |
| Housing Colour |
White |
| Insulation Material |
Polymethylpentene |
| Insulation Option |
Uninsulated |
| Length |
14.76mm |
| Max Frequency |
4GHz |
| Maximum Operating Temperature |
85°C |
| Minimum Operating Temperature |
-55°C |
| Mount |
Panel |
| Number of Positions |
1 |
| Operating Frequency |
0 to 4 GHz |
| Operating Temperature Range |
-67 – 185 |
| Orientation |
Right Angle |
| Package Quantity |
35 |
| Packaging |
Rail/Tube |
| Packaging Method |
Tube |
| Panel Mount Feature Type |
Lockwasher and Nut |
| PCB Mount Orientation |
Right Angle |
| PCB Mount Retention |
With |
| PCB Mounting Orientation |
Right Angle |
| Polarity |
Standard, Normal |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
BNC |
| Termination |
Through Hole |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.162 |
| Voltage Rating |
500v |
