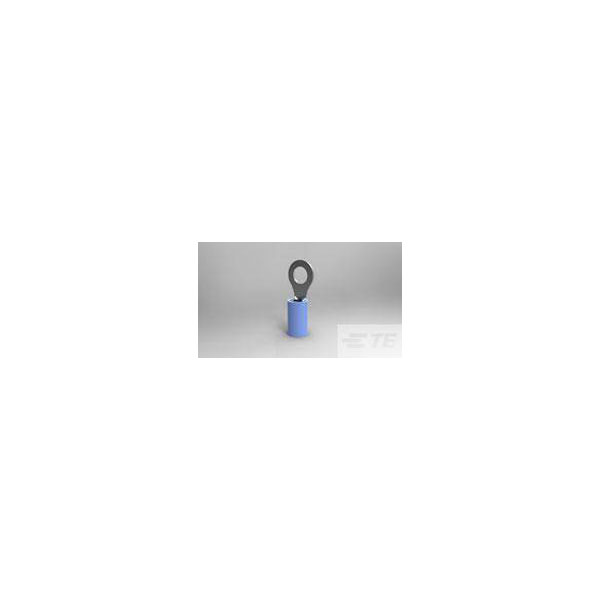

TE Connectivity manufactures the 51864-2 crimp connector, which is a solder-free, PIDG terminal featuring ring terminals in M4, M6, and M8 sizes. These connectors are commonly used in automotive applications for secure and reliable electrical connections without the need for soldering. The product ensures stability and durability, ideal for harsh environments in vehicles.
| Colour |
Blue |
| Insulated |
Partially Insulated |
| Stud Size |
Not Specifiedmm |
| Maximum Wire Size (mm2) |
2.50mm² |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Blue |
| Compatible Insulation Diameter Range |
.105 – .15 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| DC Rated Voltage |
300v |
| Depth |
7.92mm |
| ELV |
Compliant |
| Finish |
Tin |
| Government Qualified |
Yes |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Blue |
| Insulation Diameter |
3.81mm |
| Insulation Material |
Nylon |
| Length |
0.844inch |
| Material |
Copper |
| Maximimum Wire Gauge (AWG) |
14 |
| Misc Attribute |
TE AMP PIDG Terminals and Splices |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Package/Case |
300 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Packaging Type |
Box |
| Plating |
Tin |
| Product Length |
.844 |
| Product Type |
Ring Terminal |
| Product Weight |
.996 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
5mm |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Thickness |
0.79mm |
| Tongue Thickness |
0.79mm |
| Voltage Rating |
300v |
| Width |
7.92mm |
| Wire Gauge (Max) |
16AWG |
| Wire Gauge (Min) |
14AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
0.15inch |
