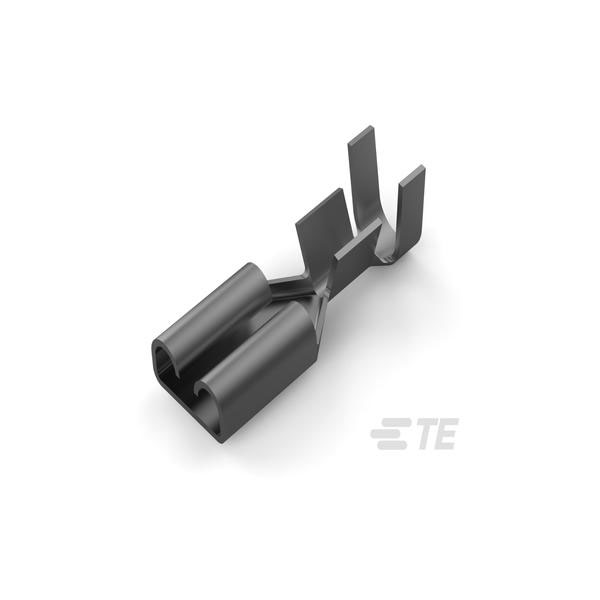

The TE Connectivity 5-160430-7 is a female unshrouded terminal measuring 4.75x0.81 mm.
It is designed for secure and reliable electrical connections.
Commonly used in automotive and industrial applications, it supports robust performance.
The terminal's compact design ensures efficient space utilisation in various electronic assemblies.
| Insulation |
Non-Insulated |
| Tab Width |
0.187inch |
| Tab Thickness |
0.032inch |
| Gender |
Female |
| Barrel Type |
Open |
| Compatible Insulation Diameter Range |
.09 – .13 |
| Compatible With Agency/Standards Products |
CSA |
| Contact Base Material |
Brass |
| Contact Plating |
Tin |
| Crimp Type |
F-Crimp |
| ELV |
Compliant |
| Insulated Wire Support |
Yes |
| Insulation Diameter |
0.13inch |
| Insulation Option |
Uninsulated |
| Lead Free |
Not Applicable |
| Length |
15mm |
| Material |
Brass |
| Mating Retention Type |
Dimple |
| Mating Tab Thickness |
.032 |
| Mating Tab Width |
.187 |
| Mount |
Free Hanging |
| Operating Temperature Range |
-40 – 230 |
| Orientation |
Straight |
| Package Quantity |
12000 |
| Packaging |
Tape and Reel |
| Packaging Method |
Strip/Reel |
| Packaging Quantity |
12000 |
| Plating |
Tin |
| Plating Thickness |
1um |
| Product Length |
.59 |
| Product Terminates To |
Wire & Cable |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Series |
Faston™ |
| Size |
0.032inch |
| Tab Length |
0.248inch |
| Terminal Material |
Brass |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Receptacle |
| Type |
Quick Disconnects |
| Wire Gauge (Max) |
20AWG |
| Wire Gauge (Min) |
5AWG |
| Wire Insulation Support |
With |
| Wire Size |
20 – 16 |
| Wire/Cable Diameter |
0.13inch |
| Wire/Cable Type |
Discrete |
