TE Connectivity 41484 Terminals TAB Stud Mount Unshrouded

Inc VAT

Qty	Unit Price (Ex VAT)
250+	£1.01

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 250

Available to back orderBack-order availability date - 02/08/2026

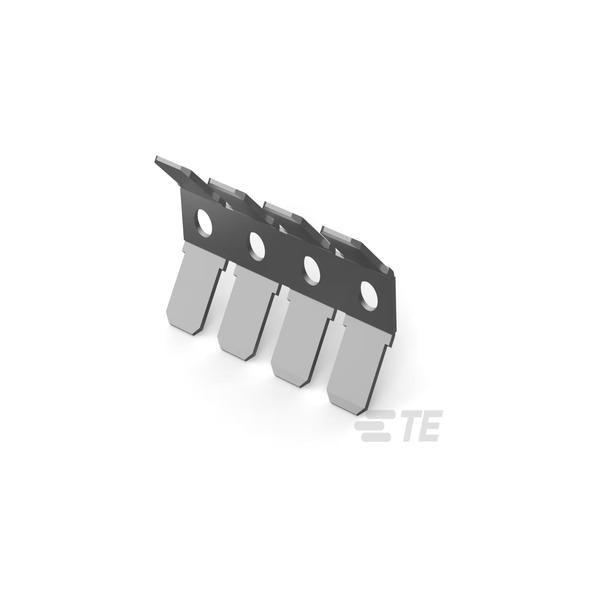

TE Connectivity 41484 is a terminal used for efficient electrical connections.

It features a stud mount design and is unshrouded for ease of use.

These terminals are typically used in automotive and industrial applications.

They provide reliable connections in environments where space is limited.

Inner Diameter	Not Specified
Material	Brass
Body Material	Brass
Body Plating	Tin
Compatible With Agency/Standards Products	CSA
Contact Material	Brass
Contact Mating Area Plating Material Thickness	80
Contact Plating	Tin
Gender	Male
Insulation	Non-Insulated
Insulation Option	Uninsulated
Length	36.57mm
Mating Tab Thickness	.032
Mating Tab Width	.25
Mount	Chassis, Board
Operating Temperature Range	-22 – 230
Package Quantity	250
Packaging	Loose Piece
Packaging Method	Bag
Packaging Quantity	250
PCB Contact Termination Area Plating Material Thickness	80
Plating	Tin
Product Terminates To	Printed Circuit Board
Radiation Hardening	No
RoHS Compliant	Yes
Series	Faston
Stud Diameter	0.13inch
Tab Thickness	0.032inch
Tab Width	0.25inch
Terminal Orientation	45 Bend
Terminal Plating Material	Tin
Termination	Screw
Termination Method to PCB	Through Hole - Screw
