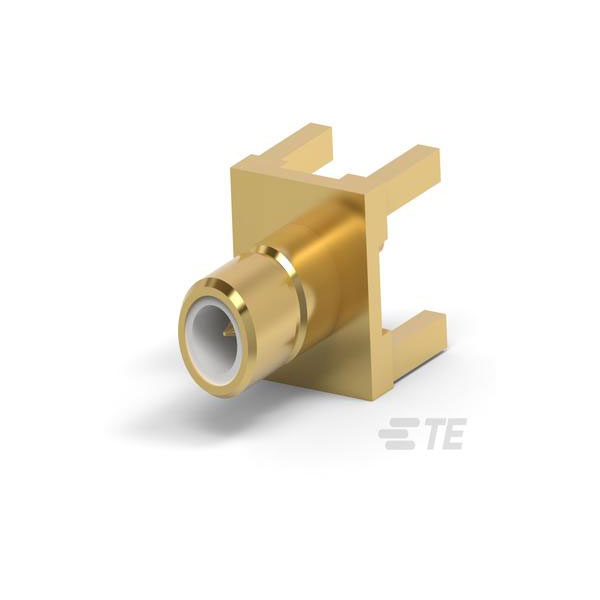

The TE Connectivity 413990-1 is a male RF SMB connector designed for mounting on printed circuit boards.
It features gold plating for enhanced conductivity and corrosion resistance.
This connector supports applications in telecommunications and data communications.
Its compact design is ideal for use in confined spaces and ensures reliable signal transmission.
| Type |
Coax Connectors |
| Impedance |
50r |
| Mounting Direction |
Straight |
| Body Material |
Brass |
| Body Plating |
Gold |
| Cable Type |
N/A (PCB Mount) |
| Center Contact Plating |
Gold |
| Connector & Contact Terminates To |
Printed Circuit Board |
| Connector Mounting Type |
Board Mount |
| Connector Product Type |
Connector Assembly |
| Connector System |
Cable-to-Board |
| Contact Material |
Brass |
| Contact Plating |
Gold |
| Depth |
6.35mm |
| Dielectric Material |
PTFE |
| Frequency |
4GHz |
| Gender |
Female |
| Height |
6.15mm |
| Housing Colour |
Gold |
| Insertion Loss |
0.3dB |
| Insulation Material |
Teflon |
| Length |
6.35mm |
| Mating cycles |
500 |
| Max Frequency |
4GHz |
| Maximum Operating Temperature |
165°C |
| Military Standard |
MIL-C-39012 |
| Minimum Operating Temperature |
-65°C |
| Mount |
Through Hole, PCB |
| Number of Ports |
1 |
| Number of Positions |
1 |
| Operating Frequency |
0 to 4 GHz |
| Operating Temperature Range |
-85 – 185 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Package/Case |
SMB |
| Packaging |
Carton |
| Packaging Method |
Carton |
| PCB Mount Orientation |
Vertical |
| PCB Mounting Orientation |
Vertical |
| Plating |
Gold |
| Polarity |
Standard, Normal |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Termination |
Solder |
| Termination Method to PCB |
Through Hole - Solder |
| Termination Post & Tail Length |
.155 |
| Voltage Rating |
335v |
