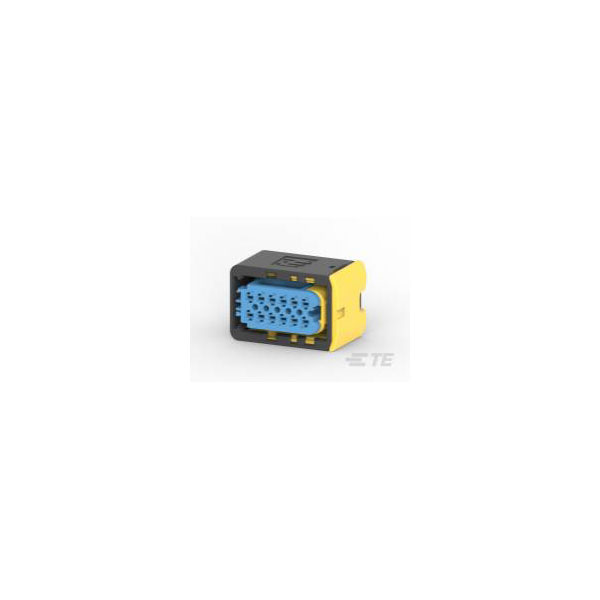

TE Connectivity 4-1703639-1 Connectors 12POS AMP MCP1.5K REC HSG CODD

TE Connectivity manufactures the 4-1703639-1 HDSCS connector, designed for robust and reliable electrical connections. This box connector is known for its durability and resistance to harsh environments, making it ideal for automotive and off-road vehicle applications. Its versatile features ensure secure connections in demanding conditions, promoting enhanced performance and safety.

Type	TE AMP HDSCS - Connectors
Number of Contacts	12
Gender	Female
Number of Rows	2
Body Material	PBT
Circuit Application	Signal
Colour	Black
Connector System	Wire-to-Wire
Contact Type	Female Socket
ELV	Compliant
Flammability Rating	UL94 V-0
Height	1.23inch
Hybrid Connector	No
Length	2.13inch
Mating Tab Width	0.063inch
Maximum Operating Temperature	140°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP HDSCS - Connectors
Mount	Free Hanging
Package Quantity	300
Packaging	Box
Packaging Type	Box
Pitch	0.157inch
Polarized	Yes
RoHS Compliant	Yes
Sealable	Yes (With)
Series	Heavy Duty Sealed Connector Series (HDSCS), MCP 1.5K
Serviceable	Yes
Strain Relief	No (Without)
Termination	Crimp
Width	25.7mm
