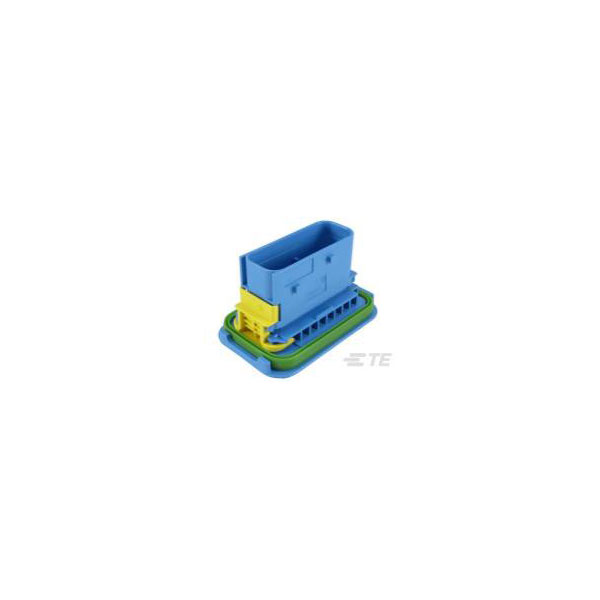

TE Connectivity 4-1564407-1 HDSCS Connector 16POS Mixed Tab Housing

TE Connectivity manufactures the 4-1564407-1 box, a robust connector in the TE AMP HDSCS line. It features durable materials ideal for harsh environments. This connector is commonly used in automotive and industrial applications.

Type	TE AMP HDSCS - Connectors
Number of Contacts	16
Gender	Male
Number of Rows	2
Body Material	PBT
Circuit Application	Signal
Colour	Blue
Connector System	Wire-to-Wire
ELV	Compliant
Flammability Rating	UL94 V-0
Height	1.894inch
Housing Color	Blue
Hybrid Connector	No
Length	62.5mm
Mating Tab Width	0.063inch
Maximum Operating Temperature	140°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP HDSCS - Connectors
Mount	Cable
Orientation	Straight
Package Quantity	72
Packaging	Box
Packaging Type	Box
Pitch	0.157inch
Polarized	Yes
RoHS Compliant	Yes
Row Spacing	0.236inch
Sealable	Yes (With)
Serviceable	Yes
Strain Relief	No (Without)
Width	1.567inch
