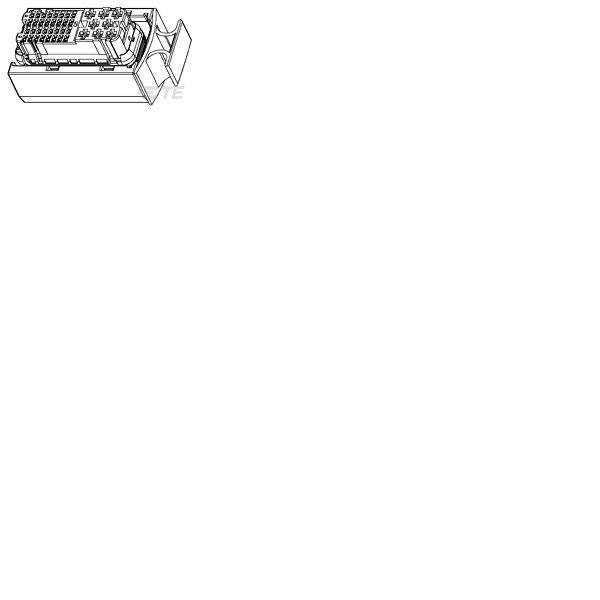

TE Connectivity 368383-1 Connector 40P REC Siemens Black

Discontinued

The TE Connectivity 368383-1 is an automotive connector designed for female connections with 40 positions.

It features an unshrouded design which facilitates easy access and installation.

This connector is typically used in automotive applications for robust and reliable electrical connections.

It is ideal for use in environments requiring durable and secure wire-to-board connectivity.

Type	TE AMP Ele Cntrl Unit Connectors
Body Material	PBT
Circuit Application	Signal
Colour	Black
Connector System	Wire-to-Board
Depth	34.39mm
ELV	Compliant
Gender	Female
Height	33.4mm
Housing colour	Black
Hybrid Connector	Yes
Lead Free	Contains Lead
Length	67.3mm
Mating Tab Width	0.11inch
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Misc Attribute	TE AMP Ele Cntrl Unit Connectors
Number of Contacts	40
Number of Positions	40
Number of Rows	3
Orientation	Straight
Package Quantity	42
Packaging	Tray
Packaging Type	Tray
Pitch	2.54
Polarized	Yes
Radiation Hardening	No
RoHS Compliant	Yes
Row Spacing	0.196inch
Sealable	Yes (With)
Serviceable	No
Strain Relief	No (Without)
Width	1.35inch
