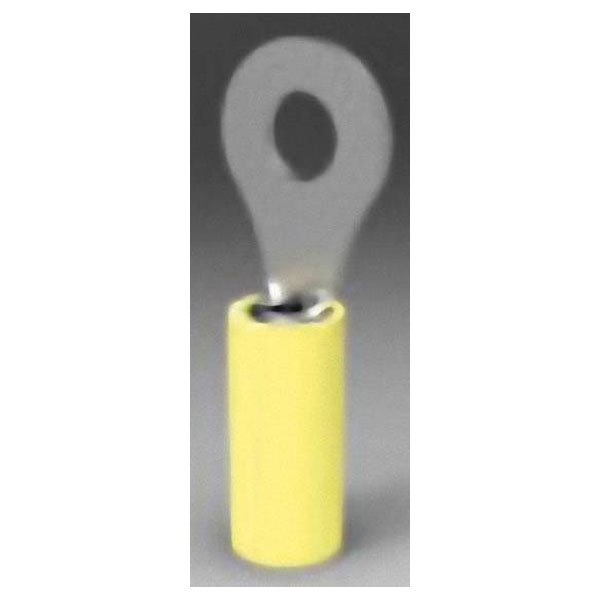

TE Connectivity 36161 ring terminals are non-insulated and designed for 10 to 12 gauge wires.
They feature a durable construction for reliable electrical connections.
These terminals are typically used in automotive and industrial applications.
The non-insulated design allows for easy installation and inspection.
| Colour |
Yellow |
| Insulated |
Partially Insulated |
| Stud Size |
5mm |
| Maximum Wire Size (mm2) |
50mm² |
| AWG (min.) |
12 |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Yellow |
| Compatible Insulation Diameter Range |
.15 – .23 |
| Contact Base Material |
Copper |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Cross-section range |
2.602 - 6.604mm² |
| Depth |
9.52mm |
| Dimensions |
(L x E x C x W) (27.51 x 22.86 x 7.67 x 9.52)mm |
| ELV |
Compliant |
| Gender |
Female |
| Government Qualified |
Yes |
| Heavy Duty |
No |
| Hole Ø |
5mm |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Yellow |
| Insulation Diameter |
5.84mm |
| Insulation Material |
Nylon |
| Length |
27.51mm |
| Manufacturer Series |
36161 |
| Material |
Copper |
| max. cross section |
6.604mm² |
| Maximimum Wire Gauge (AWG) |
10 |
| Maximum Wire Size AWG |
10 |
| Min. cross section |
2.602mm² |
| Misc Attribute |
PIDG |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
500 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
500 |
| Plating |
Tin |
| Plating Thickness |
2.54um |
| Product Length |
1.083 |
| Product Type |
Ring Terminal |
| Product Weight |
2.338 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
5mm |
| Support sleeve |
Yes |
| Terminal Gender |
Female |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Thickness |
0.039mm |
| Thread Size |
M4.5 |
| Tongue Thickness |
0.99mm |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
12AWG |
| Wire Gauge (Min) |
10AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
0.23inch |
