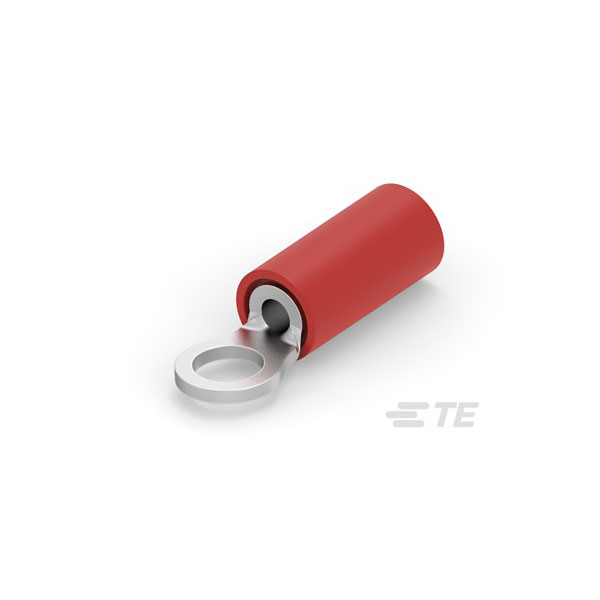

TE Connectivity 36149 PIDG ring terminal is an insulated electrical connector.
It is designed for 22-16 AWG wires with a red insulation.
The terminal enhances connection reliability and is ideal for aerospace, industrial, and automotive applications.
Its durable design ensures secure wire termination and protection against environmental factors.
| Colour |
Red |
| Insulated |
Partially Insulated |
| Stud Size |
Not Specifiedmm |
| Maximum Wire Size (mm2) |
1.5mm² |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Red |
| Compatible Insulation Diameter Range |
.08 – .125 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Depth |
5.54mm |
| ELV |
Compliant |
| Gender |
Female |
| Government Qualified |
Yes |
| Heavy Duty |
No |
| Inside Diameter |
3.25mm |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Red |
| Insulation Diameter |
0.125inch |
| Insulation Material |
Nylon |
| Length |
17.07mm |
| Material |
Copper |
| Maximimum Wire Gauge (AWG) |
16 |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
5000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
5000 |
| Plating |
Tin |
| Plating Thickness |
2.54um |
| Product Length |
.672 |
| Product Type |
Ring Terminal |
| Product Weight |
.715 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
3.68mm |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
0.79mm |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
3.18mm |
