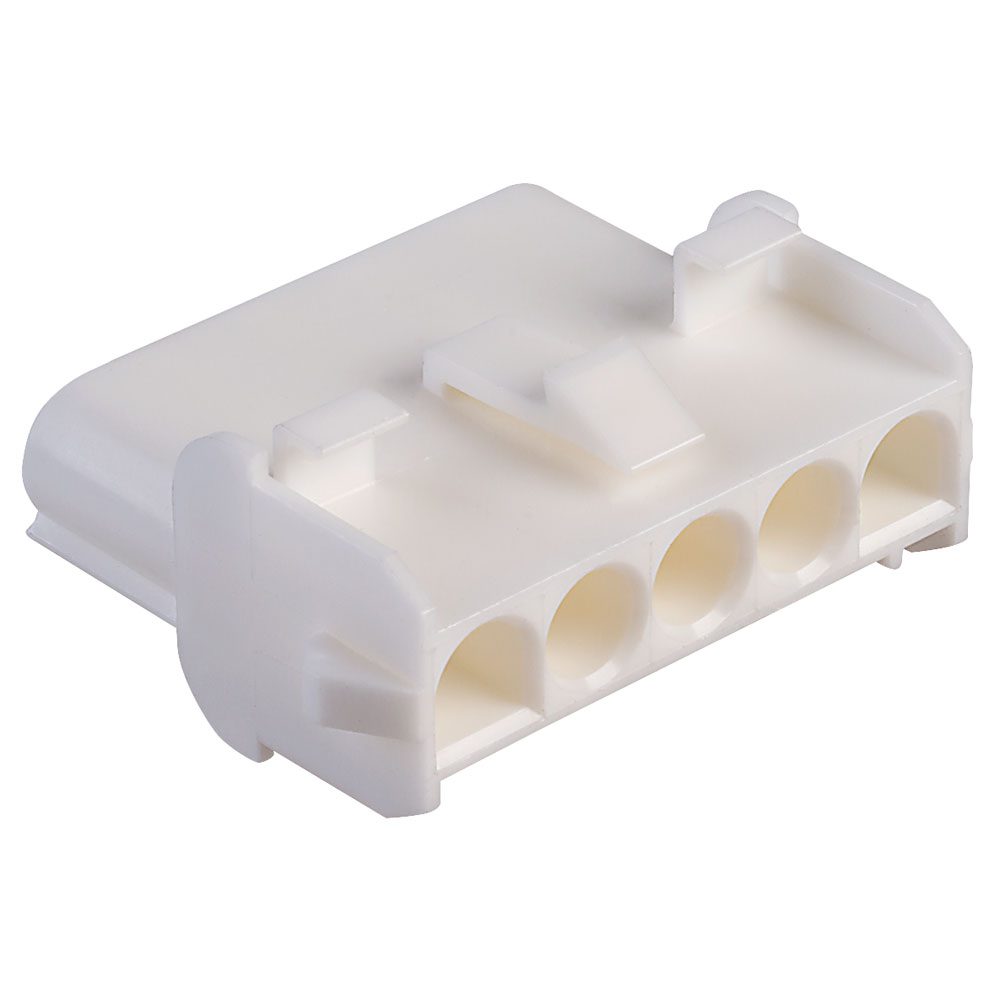

TE Connectivity 350810-1 5 Way MATE-N-LOK Receptacle Housing

MPN: 350810-1
Brand: TE Connectivity
Order Code: 22-4626
Country of Origin: USA

RoHS Compliant
Free UK shipping available

View Full Product Range (2)

Inc VAT

Qty	Was	Unit Price (Ex VAT)
1+	£0.069	£0.066

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Despatched same day - 15 in stockContact us for additional stock

Product Details
Product Range
Data Sheets

Universal white Mate-N-Lok receptacle housing with 5 ways from TE Connectivity, ideal for a range of industrial applications.

Positive lock
Current rating 19A
Voltage rating 600V
Pitch 6.35mm
Nylon housing material
UL, CSA approved

Type	Positive Lock
Pitch	6.35mm
Number of Rows	1
Mounting Type	Cable mount
Mounting Direction	Straight
Approvals	CSA
Colour	Natural, White, Beige
Connection	Receptacle housing
Connector System	Wire-to-Wire
Contact Gender	Female
Contact Material	Bronze
Contact Retention	No (Without)
Contact Type	Male or Female
Current Rating	19a
Depth	27.43mm
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Receptacle
Housing Colour	White
Length	27.4mm
Material	Nylon
Max Current Rating	19a
Max Voltage Rating (AC)	600v
Maximum Operating Temperature	221°C
Minimum Operating Temperature	-67°C
Mount	Panel
Number of Circuits	5
Number of Contacts	5
Number of pins	5
Number of Positions	5
Orientation	Straight
Package Quantity	1
Packaging	Bulk
Panel Thickness	2.29mm
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No (Without)
Series	Universal MATE-N-LOK
Termination	Crimp
VDE Tested	Yes
Voltage Rating	600v
Width	33mm
Wire Gauge (Max)	30AWG
Wire Gauge (Min)	10AWG
Wire/Cable Gauge	30AWG
