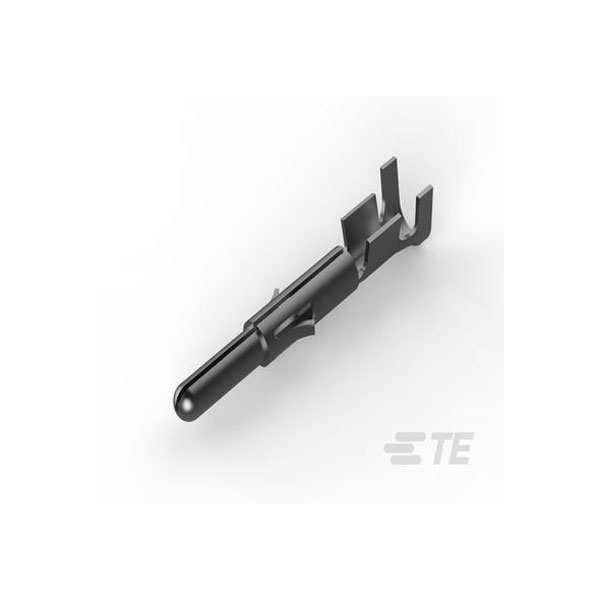

TE Connectivity 350669-1 Pin & Socket Connector Male Unshrouded 20-14 CRIMP PIN

Order Code:

14-5095

Brand: TE Connectivity MPN: 350669-1
Qty Unit Price (Ex VAT)
2000+ £0.172
Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT
Order in multiples of 2000
Available to back orderBack order, lead time 14 days

TE Connectivity 350669-1 is a male unshrouded pin used in pin and socket connectors.

It accommodates wire sizes ranging from 20 to 14 AWG with a crimp termination style.

The connector is suitable for use in various electronic and electrical applications.

It ensures reliable and secure connections in both consumer and industrial devices.


Type Connector Contacts
Approvals UL
Circuit Application Power
Compatible Insulation Diameter Range .06 – .13
Compatible With Agency/Standards Products VDE
Connector System Wire-to-Wire
Contact Base Material Brass
Contact Current Rating 19a
Contact Current Rating (Max) 19
Contact Gender Male
Contact Material Brass
Contact Mating Area Plating Material Tin (Sn)
Contact Plating Tin
Contact Retention Within Housing With
Contact Type Pin
Current Rating 19a
Depth 4.32mm
ELV Compliant
Gender Male
Height 4.32mm
Insulation Diameter 0.13inch
Lead Free Lead Free
Length 22.86mm
Manufacturer Series 350669-1
Max Operating Temperature 125°C
Max Voltage Rating (AC) 600v
Min Operating Temperature -55°C
Mount Cable
Number of Ports 1
Operating Temperature Range -67 – 257
Operating Voltage 600
Orientation Straight
Package Quantity 1000
Packaging Bag
Packaging Method Bag
Packaging Quantity 1000
Product Terminates To Wire & Cable
Radiation Hardening No
Reach SVHC Compliant No
RoHS Compliant Yes
Series Universal MATE-N-LOK
Termination Crimp
Termination Method to Wire & Cable Crimp
VDE Tested Yes
Voltage Rating 250v
Voltage Rating (AC) 600v
Wire Gauge (Max) 20AWG
Wire Gauge (Min) 14AWG
Wire Insulation Support Without
Wire Size 20 – 14
Wire/Cable Gauge 14AWG
Wire/Cable Type Discrete
