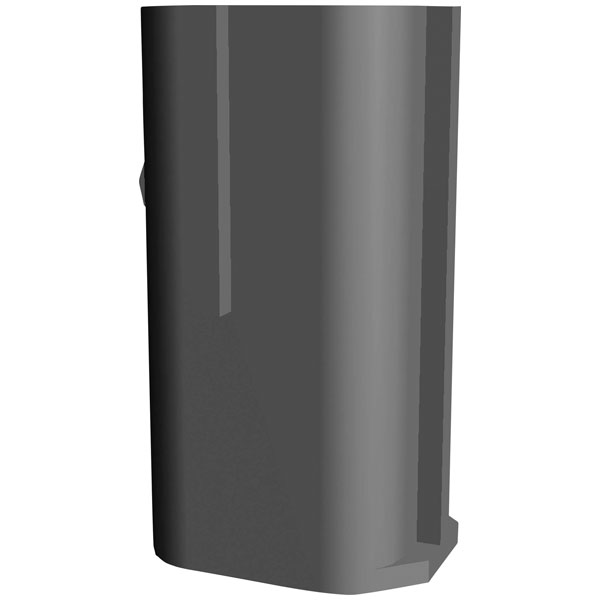

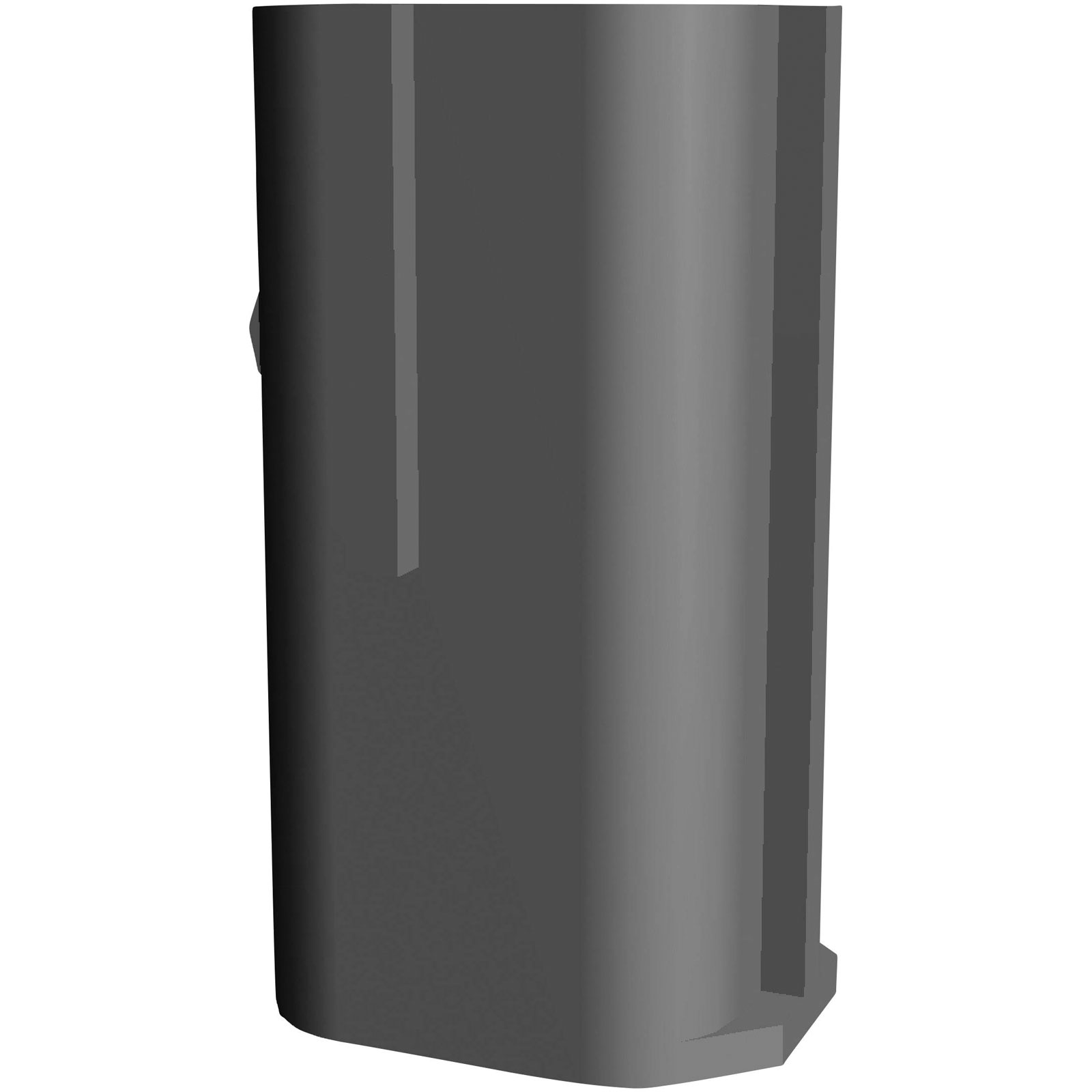

TE Connectivity 344265-1 Econoseal Pin Housing Cable 6 Pins

TE Connectivity's Econoseal III pin housing cable features six pins in a robust design suitable for automotive and industrial applications. Its secure, watertight housing ensures reliability in harsh environments. This connection system supports high performance with reliable signal and power transmission.

Type	Pin housing cable
Pitch	4.8mm
Number of Ways	6
Number of Rows	2
Mounting Type	Cable mount
Mounting Direction	Straight
Case Material	Polyamide
Color	Black
Connector contact surface	Tin plated
Connector System	wire-to-wire
Contact Type	Tab
Current Rating	10A
Depth	36.35mm
Dim	(L x W x H) 23.175 x 36.35 x 26.3 mm
ELV	Compliant
Factory colour	Black
Gender	Male
Height	26.3mm
Housing Color	Black
Hybrid Connector	No
Industrial packaging	No
Insulation Material	Polyamide
Lead Free	Not Applicable
Length	23.175mm
Misc Attribute	Econoseal III .070 SERIE
Mount	Free Hanging
Number of Contacts	6
Number of Positions	6
Orientation	Straight
Package Quantity	800
Packaging	Box
Pin shape	Rectangular
Pins per row	3
Plug / Socket	Plug, straight
Polarized	Yes
Primary Type	CONNECTOR
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Row Spacing	0.22inch
Sealable	Yes (With)
Series	Econoseal 3
Shielding	Unshielded
Strain Relief	No (Without)
Termination	Crimp
Total number of pins	6
Width	36.35mm
Wire Gauge (Max)	14AWG
Wire Gauge (Min)	20AWG
