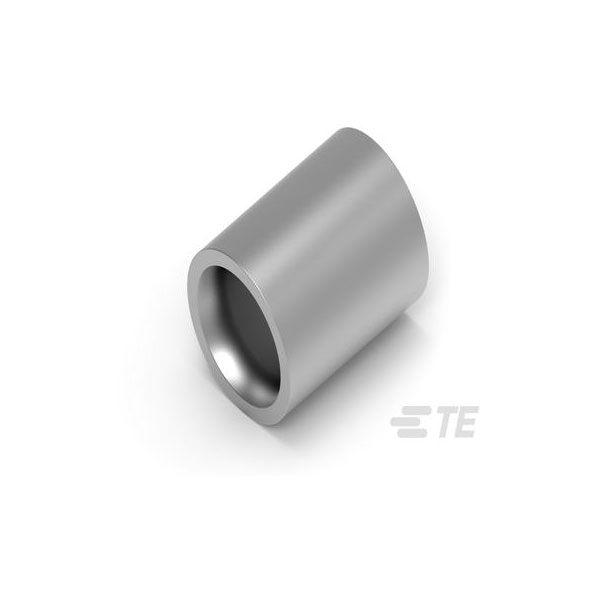

TE Connectivity 34318 Parallel Splice, 8 AWG, 6.64 10.5 mm² Wire

The TE Connectivity 34318 Parallel Splice is an uninsulated, serrated copper splice designed to join two 8 AWG (6.64–10.5 mm²) wires in a parallel configuration. Typical in high-reliability environments, this splice is ideal for solid and stranded conductors.

Type	Splices
Wire Gauge	8AWG
Colour	Red
Barrel Type	Closed
Body Material	Copper
Body Plating	Tin
Contact Base Material	Copper
Contact Material	Copper, Silver, Copper Alloy
Contact Plating	Tin
Depth	7.52mm
Diameter	7.52mm
ELV	Compliant
Government Qualified	No
Inside Diameter	4.37mm
Insulated Wire Support	No
Insulation	Non-Insulated
Insulation Option	Uninsulated
Length	9.53mm
Manufacturer Series	34318
Material	Copper, Tin
Maximum Operating Temperature	170°C
Number of Wire Entries	2
Orientation	Straight
Outside Diameter	7.52mm
Package Quantity	500
Package/Case	Metal
Packaging	Loose Piece
Packaging Method	Loose Piece
Packaging Quantity	500
Plating	Tin
Product Length	.375
Product Weight	2.546
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No
Series	Solistrand
Terminal Gender	Female
Terminal Material	Copper
Terminal Plating Material	Tin
Termination	Crimp
Thickness	1.22mm
Wire Insulation Support	Without
Wire Size	13100 – 20800
Wire/Cable Diameter	10.5mm
