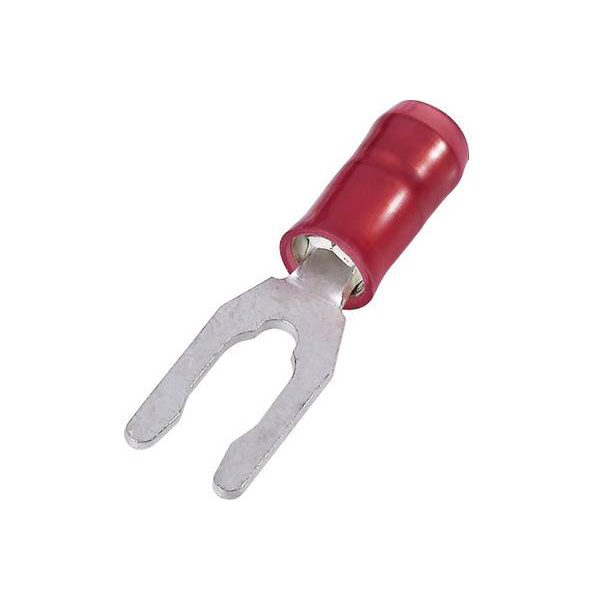

TE Connectivity 34080 U Terminal Red Partially Insulated Hole Ø3.51mm

TE Connectivity's U terminal part number 34080 is a red, partially insulated crimp connector designed for wire sizes 0.206 mm² to 1.605 mm² with a hole diameter of 3.51 mm. Manufactured under the Tyco Electronics brand, this blade terminal is well-suited for secure electrical connections in various automotive, industrial, and electronics applications. Its primary attribute is its reliable connection performance, particularly useful in environments requiring robust and durable connections.

Colour	Red
Insulation	PA
Maximum Wire Size mm2	1.6mm2
Maximum Wire Size AWG	16
Barrel Type	Closed
Body Material	Copper
Body Plating	Tin
Color	Red
Compatible Insulation Diameter Range	.08 – .125
Contact Material	Copper
Contact Plating	Tin
Cross-section range	0.206 - 1.605 mm²
Depth	7.54mm
Dimensions	(19.13, 15.42, 5.16, 3.58 mm)
ELV	Compliant
Factory colour	Red
Gender	Female
Government Qualified	No
Heavy Duty	No
Hole Ø	3.51mm
Insulated Wire Support	Yes
Insulation Color	Red
Insulation Diameter	0.125inch
Insulation Material	Nylon
Insulation Option	Partially Insulated
Lead Free	Lead Free
Length	0.753inch
Material	Copper
Max Operating Temperature	105°C
max. cross section	1.605mm²
Min. cross section	0.206mm²
Misc Attribute	PIDG
Mount	Free Hanging
Operating Temperature Range	0 – 221
Orientation	Straight
Package Quantity	1000
Packaging	Box
Packaging Method	Box
Packaging Quantity	1000
Plating	Tin
Product Length	.753
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	Yes
Sealable	No
Series	PIDG
Stud Diameter	0.138inch
Stud Size	M3.5
Support sleeve	Yes
Terminal Material	Copper
Terminal Orientation	Straight
Terminal Plating Material	Tin
Termination	Crimp
Thread Size	M3.5
Tongue Thickness	0.84mm
Type	Fork Terminals
Voltage Rating	300v
Width	7.54mm
Wire Gauge (Max)	22AWG
Wire Gauge (Min)	16AWG
Wire Insulation Support	With
Wire/Cable Diameter	3.18mm
