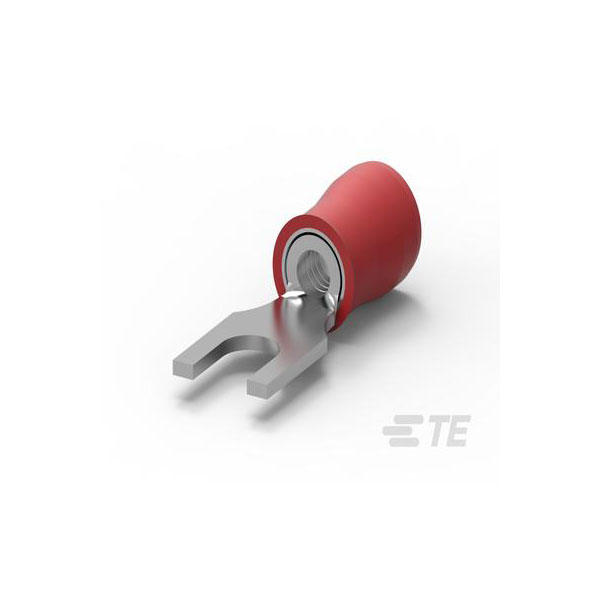

TE Connectivity 328394 is a PIDG spade connector designed for unshrouded female applications with 22-16 AWG wire.
It features a reliable crimp termination providing strong mechanical and electrical performance.
This connector is commonly used in automotive and industrial environments for secure wire connections.
Its durable construction ensures long-lasting use in harsh conditions.
| Insulation |
Insulated |
| Colour |
Red |
| Tab Thickness |
0.84mm |
| Gender |
Female |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Compatible Insulation Diameter Range |
.105 – .14 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Depth |
4.62mm |
| ELV |
Compliant |
| Government Qualified |
No |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation Diameter |
0.14inch |
| Insulation Material |
Nylon |
| Insulation Option |
Partially Insulated |
| Lead Free |
Not Applicable |
| Length |
0.7272inch |
| Material |
Copper |
| Maximum Operating Temperature |
105°C |
| Mount |
Free Hanging |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Product Length |
.727 |
| Product Weight |
.614 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Shrouded |
No (Without) |
| Stud Diameter |
2.36mm |
| Stud Size |
M2 |
| Terminal Material |
Copper |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
0.79mm |
| Type |
Spade Terminals |
| Voltage Rating |
300v |
| Width |
4.62mm |
| Wire Gauge (Max) |
22AWG |
| Wire Gauge (Min) |
16AWG |
| Wire Insulation Support |
With |
| Wire Size |
509 – 3260 |
| Wire/Cable Diameter |
3.56mm |
