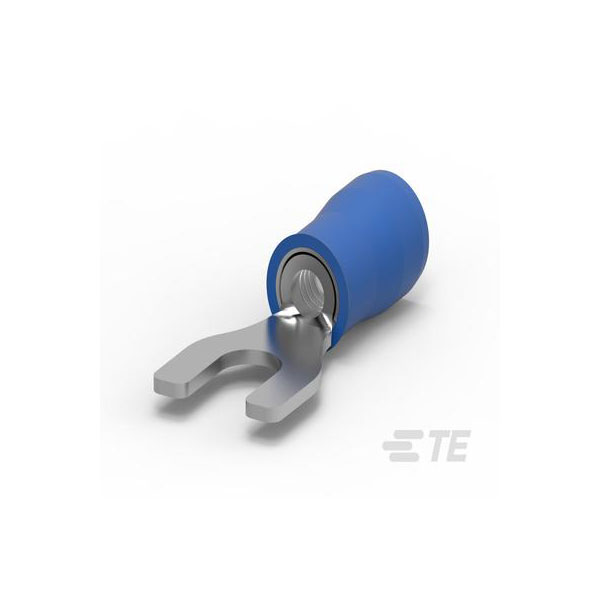

The TE Connectivity 328281 Terminal is a PIDG spade terminal designed for 16-14 AWG wire sizes.
It features a female unshrouded connection type for easy installation.
The terminal provides reliable electrical connections in automotive and industrial applications.
It is ideal for use in environments requiring consistent performance and durability.
| Insulation |
Insulated |
| Colour |
Blue |
| Gender |
Female |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Compatible Insulation Diameter Range |
.115 – .17 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Depth |
6.2mm |
| ELV |
Compliant |
| Government Qualified |
No |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation Colour |
Blue |
| Insulation Diameter |
0.17inch |
| Insulation Material |
Nylon |
| Insulation Option |
Partially Insulated |
| Length |
21.49mm |
| Material |
Copper |
| Mount |
Free Hanging |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
1000 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
1000 |
| Plating |
Tin |
| Plating Thickness |
2.54um |
| Product Length |
.846 |
| Product Weight |
.948 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
3.68mm |
| Stud Size |
M3.5 |
| Terminal Material |
Copper |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
0.79mm |
| Type |
Spade Terminals |
| Voltage Rating |
300v |
| Width |
6.2 |
| Wire Gauge (Max) |
16AWG |
| Wire Gauge (Min) |
14AWG |
| Wire Insulation Support |
With |
| Wire Size |
2050 – 5180 |
| Wire/Cable Diameter |
0.17inch |
