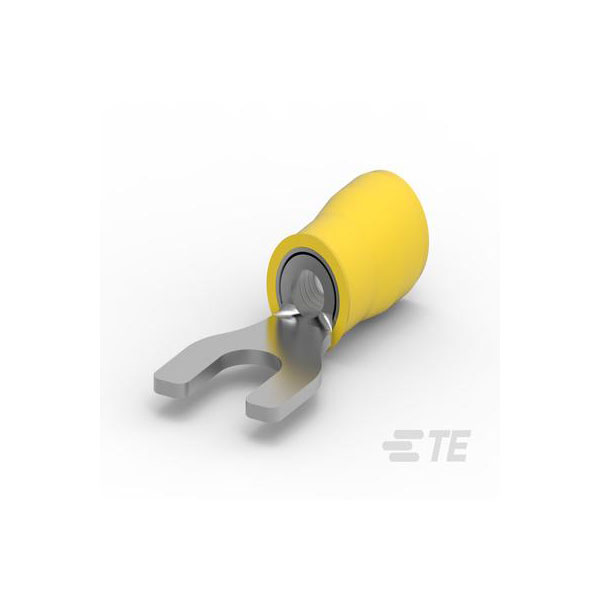

TE Connectivity 326859 terminals are unshrouded spade terminals designed for 12-10 AWG wire.
They feature insulated barrel construction to ensure secure connections and reliable performance.
These terminals are typically used in automotive and industrial applications for connecting wires to electrical components.
Their durable design and compatibility make them suitable for a variety of electrical wiring tasks.
| Insulation |
Insulated |
| Colour |
Yellow |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Compatible Insulation Diameter Range |
.15 – .23 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Depth |
7.92mm |
| Government Qualified |
No |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation Colour |
Yellow |
| Insulation Diameter |
5.8974mm |
| Insulation Material |
Nylon |
| Insulation Option |
Partially Insulated |
| Jacket Material |
Polyamide |
| Length |
1.0949inch |
| Material |
Copper |
| Max Operating Temperature |
105°C |
| Min Operating Temperature |
-55°C |
| Mount |
Free Hanging |
| Operating Temperature Range |
0 – 221 |
| Package Quantity |
500 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
500 |
| Plating |
Tin |
| Product Length |
1.095 |
| Product Weight |
2.373 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
3.68mm |
| Stud Size |
M3.5 |
| Terminal Material |
Copper |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
1.02mm |
| Type |
Spade Terminals |
| Voltage Rating (AC) |
300v |
| Width |
7.92mm |
| Wire Gauge (Max) |
10AWG |
| Wire Gauge (Min) |
12AWG |
| Wire Insulation Support |
With |
| Wire Size |
5180 – 13100 |
| Wire/Cable Diameter |
0.23inch |
