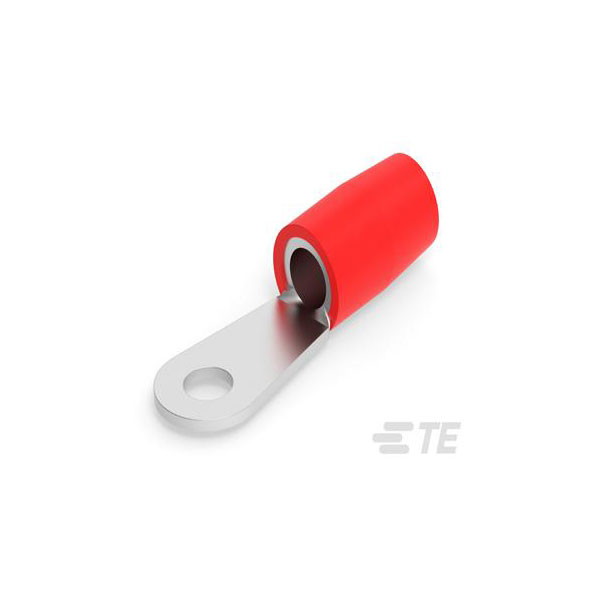

TE Connectivity, 324043, is an insulated ring tongue terminal designed for 8 AWG wire size.
It features a #10 stud size and crimp connection type, ensuring secure electrical connections.
The terminal is unshrouded, allowing for straightforward installation and inspection.
It is typically used in automotive, industrial, and electrical applications for connecting wires to equipment.
| Colour |
Red |
| Insulated |
Partially Insulated |
| Stud Size |
Not Specifiedmm |
| Maximum Wire Size (mm2) |
10mm² |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Red |
| Compatible Insulation Diameter Range |
.256 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Depth |
10.95mm |
| Finish |
Tin |
| Gender |
Female |
| Government Qualified |
Yes |
| Heavy Duty |
No |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Red |
| Insulation Diameter |
0.256inch |
| Insulation Material |
Nylon |
| Lead Free |
Lead Free |
| Length |
1.402inch |
| Material |
Copper |
| Maximimum Wire Gauge (AWG) |
8 |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
100 |
| Packaging |
Loose Piece |
| Packaging Method |
Loose Piece |
| Packaging Quantity |
100 |
| Plating |
Tin |
| Product Length |
1.402 |
| Product Type |
Ring Terminal |
| Product Weight |
3.11 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
Unknown |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
TERMINYL |
| Stud Diameter |
4.82mm |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Tongue Thickness |
1.09mm |
| Wire Insulation Support |
With |
| Wire/Cable Gauge |
8AWG |
