TE Connectivity 323745 Hi Temp Ring Terminals 12-10 High Temperature

MPN: 323745
Brand: TE Connectivity
Order Code: 15-2391
Country of Origin: USA

RoHS Compliant
Free UK shipping available

Inc VAT

Qty	Unit Price (Ex VAT)
70+	£2.70

Price per unit {{ this._page.IncVat ? 'Inc' : 'Ex' }} VAT

Order in multiples of 70

Available to back orderBack order, lead time 4 months

Product Details
Quick Quote

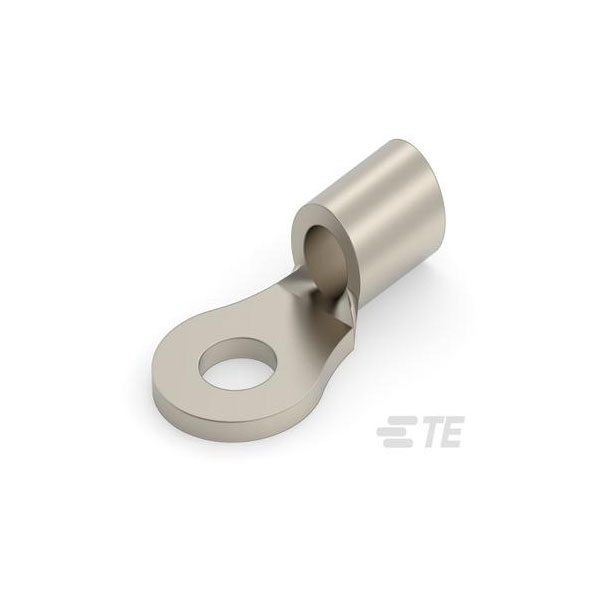

TE Connectivity 323745 are high temperature ring terminals.

They are designed to accommodate 12-10 gauge wires.

The terminals are ideal for high-temperature applications such as automotive or industrial environments.

They provide reliable electrical connections in demanding conditions.

Colour	Metal
Insulated	Uninsulated
Stud Size	Not Specifiedmm
Maximum Wire Size (mm2)	6mm²
Barrel Type	Closed
Body Material	Nickel
Color	Orange, Silver
Contact Material	Nickel
Contact Plating	Unplated
Depth	9.53mm
ELV	Compliant
Gender	Female
Government Qualified	No
Heavy Duty	No
Insulated Wire Support	No
Insulation	Non-Insulated
Lead Free	Not Applicable
Length	18.77mm
Material	Nickel
Max Operating Temperature	650°C
Maximimum Wire Gauge (AWG)	10
Mount	Stud
Number of Holes	1
Operating Temperature Range	0 – 1200
Orientation	Straight
Package Quantity	500
Packaging	Loose Piece
Packaging Method	Loose Piece
Packaging Quantity	500
Plating	Unplated
Product Length	.739
Product Type	Ring Terminal
Product Weight	1.935
Radiation Hardening	No
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Sealable	No
Series	STRATO-THERM
Shrouded	No (Without)
Stud Diameter	4.34mm
Terminal Orientation	Straight
Terminal Plating Material	Nickel
Termination	Crimp
Thickness	0.039inch
Tongue Thickness	0.99mm
Wire Gauge (Max)	10AWG
Wire Gauge (Min)	12AWG
Wire Insulation Support	Without
Wire/Cable Diameter	3.3mm
