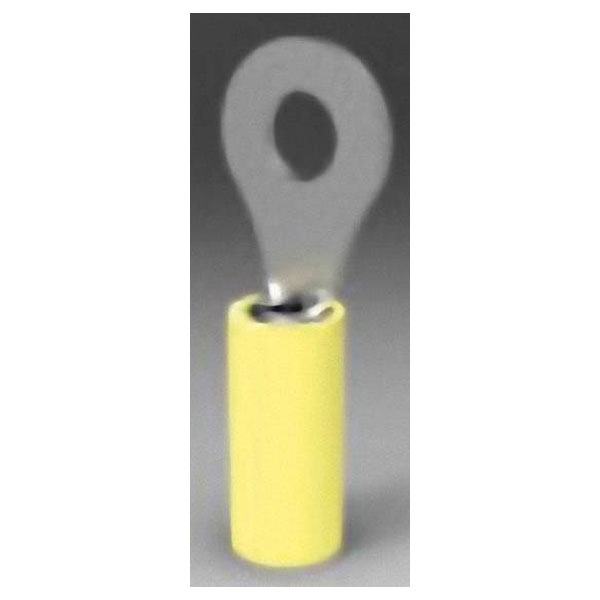

TE Connectivity 320576 is a PIDG ring terminal designed for secure and reliable wire connections.
This unshrouded female terminal accommodates wire sizes from 12-10 AWG with a 5/16 inch stud size.
It is typically used in automotive, aerospace, and industrial applications.
The terminal ensures high corrosion resistance and long-lasting performance.
| Colour |
Yellow |
| Insulated |
Partially Insulated |
| Stud Size |
8mm |
| Maximum Wire Size (mm2) |
50mm² |
| AWG (min.) |
12 |
| Barrel Type |
Closed |
| Body Material |
Copper |
| Body Plating |
Tin |
| Color |
Yellow |
| Compatible Insulation Diameter Range |
.15 – .23 |
| Contact Material |
Copper |
| Contact Plating |
Tin |
| Cross-section range |
2.602 - 6.604 mm² |
| Depth |
13.49mm |
| Dimensions |
(L x E x C x W) (33.58 x 26.77 x 11.89 x 13.49)mm |
| Gender |
Female |
| Government Qualified |
Yes |
| Heavy Duty |
No |
| Hole Ø |
7.92mm |
| Insulated Wire Support |
Yes |
| Insulation |
Insulated |
| Insulation Color |
Yellow |
| Insulation Diameter |
0.23inch |
| Insulation Material |
Nylon |
| Jacket Material |
Nylon |
| Length |
1.322inch |
| Material |
Copper |
| Max Operating Temperature |
105°C |
| max. cross section |
6.604mm² |
| Maximimum Wire Gauge (AWG) |
10 |
| Min Operating Temperature |
-55°C |
| Min. cross section |
2.602mm² |
| Misc Attribute |
PIDG |
| Mount |
Free Hanging |
| Number of Holes |
1 |
| Operating Temperature Range |
0 – 221 |
| Orientation |
Straight |
| Package Quantity |
500 |
| Packaging |
Box |
| Packaging Method |
Box |
| Packaging Quantity |
500 |
| Plating |
Tin |
| Product Length |
1.322 |
| Product Type |
Ring Terminal |
| Product Weight |
3.166 |
| Radiation Hardening |
No |
| Reach SVHC Compliant |
No |
| RoHS Compliant |
Yes |
| Sealable |
No |
| Series |
PIDG |
| Stud Diameter |
0.312inch |
| Support sleeve |
Yes |
| Terminal Orientation |
Straight |
| Terminal Plating Material |
Tin |
| Termination |
Crimp |
| Thread Size |
M8 |
| Tongue Thickness |
0.042inch |
| Voltage Rating (AC) |
300v |
| Wire Gauge (Max) |
12AWG |
| Wire Gauge (Min) |
10AWG |
| Wire Insulation Support |
With |
| Wire/Cable Diameter |
0.23inch |
| Wire/Cable Gauge |
-10AWG |
